E.11.1 Air terminal element

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcAirTerminal
IfcAirTerminalType
IfcRelDefinesByType
IfcDistributionPort
IfcRelNests
IfcShapeRepresentation
IfcExtrudedAreaSolidTapered
IfcMappedItem
IfcPropertySet
IfcLibraryReference
IfcRelAssociatesLibrary
IfcRelDefinesByProperties
IfcProjectLibrary

This example includes a building file containing an air terminal occurrence referencing the external type. It demonstrates type instantiation, tapered extruded solid geometry, port connectivity, duct segments with material profiles, and library referencing.

The air terminal occurrence is placed within a building and has its inlet port connected to the outlet port of a duct segment. The air terminal occurrence has mapped geometry according to the type imported from the other file. The duct segment has an associated material profile set of an aluminum hollow circle, an 'Axis' representation indicating the path following a straight line upwards, and a 'Body' representation constructed by extruding the profile along the axis. The aluminum material has a surface style defined using a texture embedded within the file. Figure 449 illustrates the air terminal occurrence connected to the duct segment, where ports are not shown.

NOTE  The example contains an air terminal by itself for brevity; in an actual building, such air terminal would likely fill an opening of a ceiling covering within a space.
example of air terminal

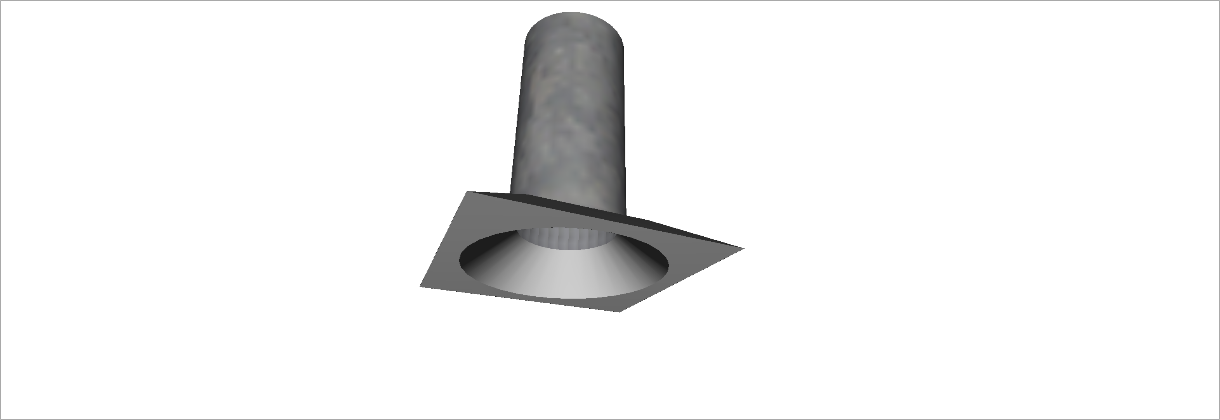

Figure 449 — Air terminal occurrence representation

The air terminal occurrence is linked to the type using mapped geometry, as illustrated in Figure 450.

example of air terminal

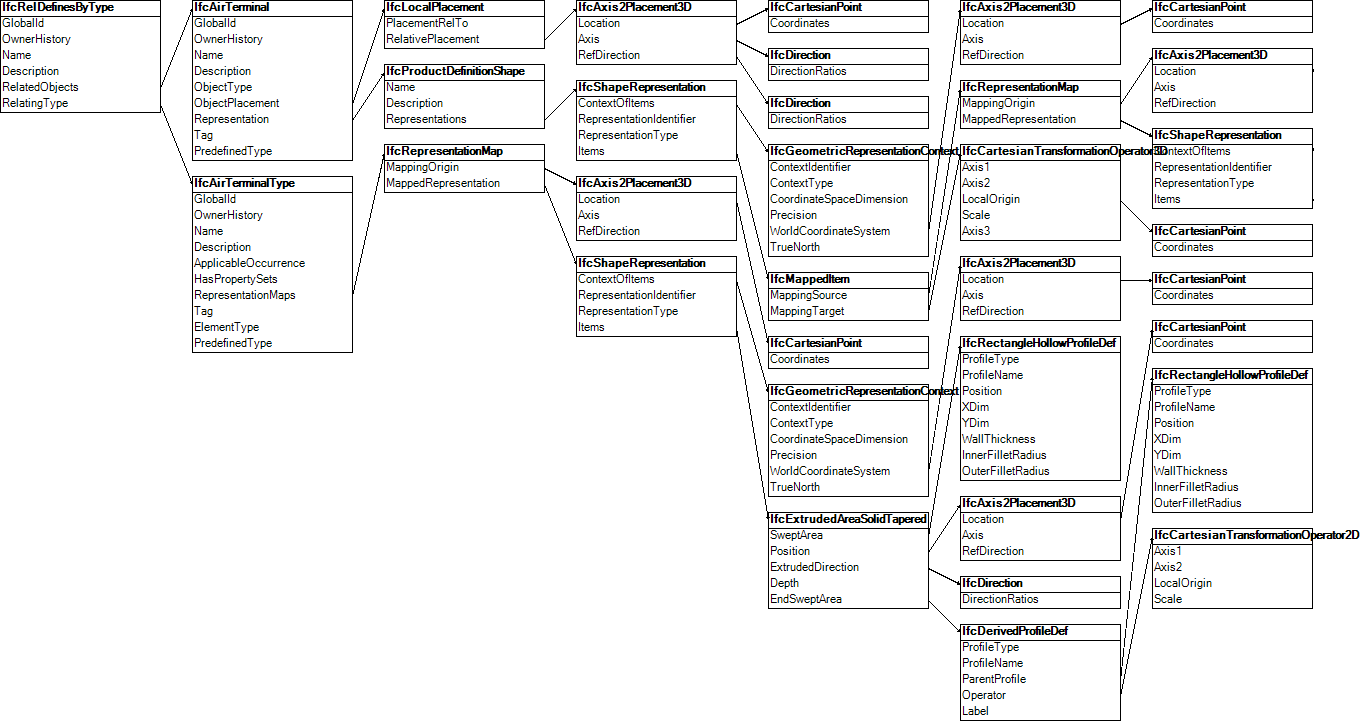

Figure 450 — Air terminal occurrence object graph
