Figure 419 — Advanced brep representation using NURBS
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcAdvancedBrep |
| IfcShapeRepresentation |
| IfcSanitaryTerminal |

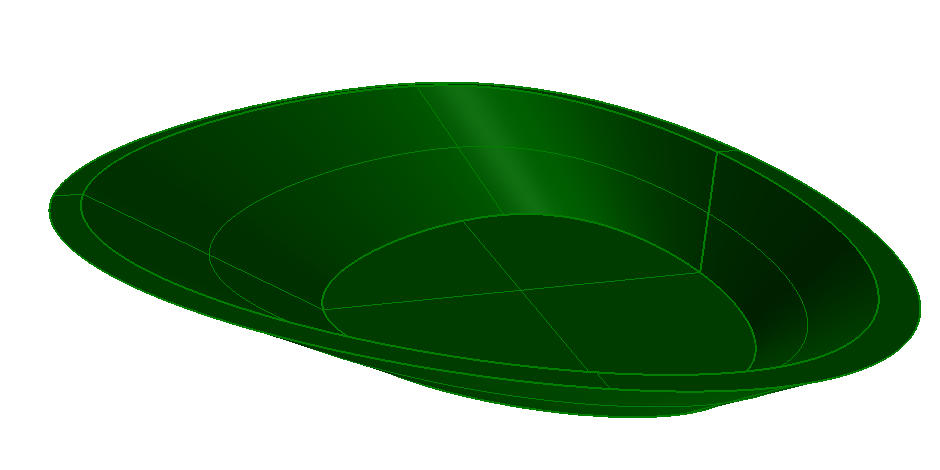

The advanced brep representation using NURBS is shown in Figure 419. It shows a basin as a santitary terminal.
|
|
|
Figure 419 — Advanced brep representation using NURBS |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
