Figure 420 — Faceted brep representation
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcFacetedBrep |

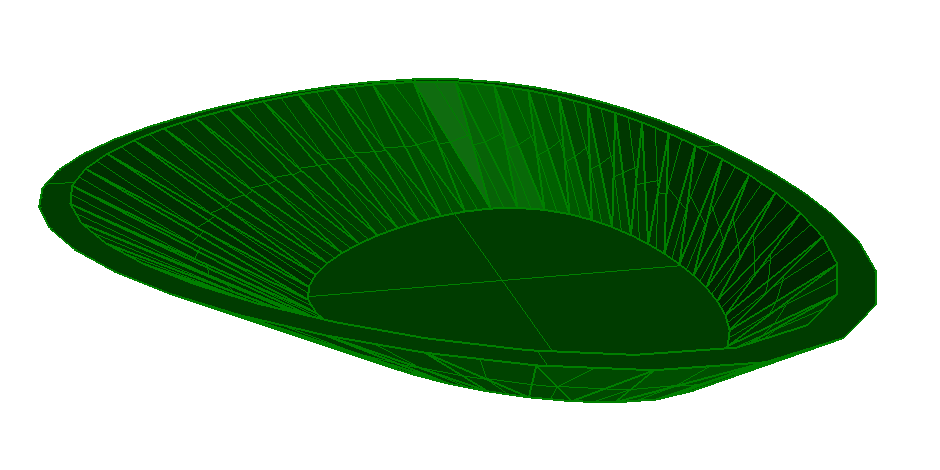

The faceted brep representation is shown in Figure 420. It shows a basin as a santitary terminal. It corresponds to the previous example, showing the same basin as advanced brep representation.
|
|
|
Figure 420 — Faceted brep representation |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
