Figure 421 — Faceted brep representation
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcTriangulatedFaceSet |

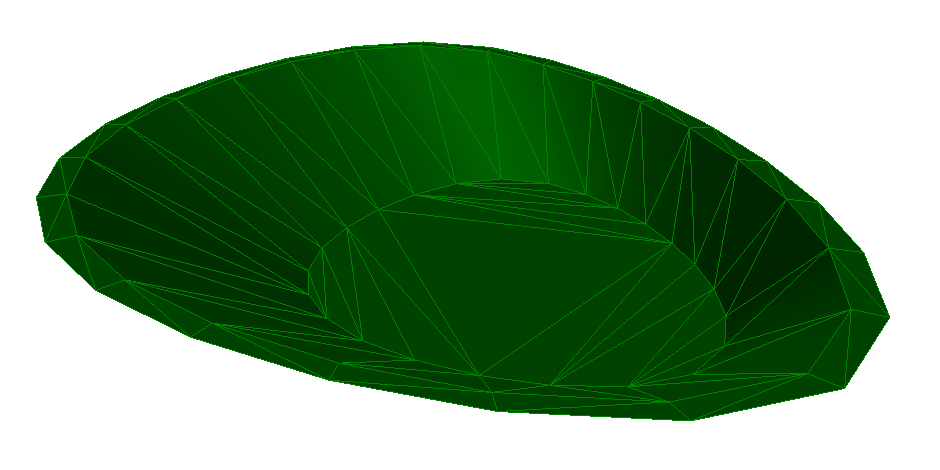

The triangulated tessellation is shown in Figure 421. It shows a basin as a santitary terminal. It corresponds to the two previous example, showing the same basin as advanced brep representation and as faceted brep representation.
|
|
|
Figure 421 — Faceted brep representation |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
