E.4.2 Beam curved I-shape tessellated

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcTriangulatedFaceSet
IfcShapeRepresentation
IfcBeam

The example shows a curved beam with an I-Shape cross section being tessellated with a fine mesh. Figure 425 and Figure 426 display the rendering in a target application.

NOTE  The density of the mesh depends on the algorithm used by the application. In general it is recommended to not use an overly fine mesh to minimize data set sizes. The mesh density of the example is already very high.

The example shows a tessellation without adding the normals at each vertex to the data set.

beam_curved_tessellated_reference-view_edges beam_curved_tessellated_reference-view_shaded

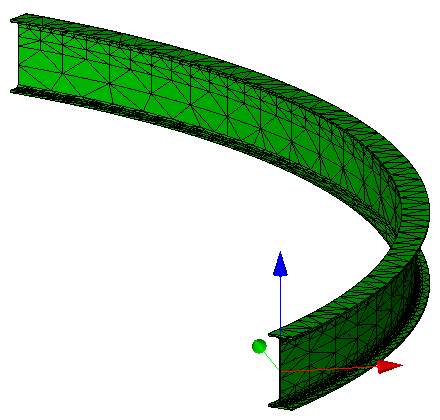

Figure 425 — tessellated curved beam visualized with edges visible

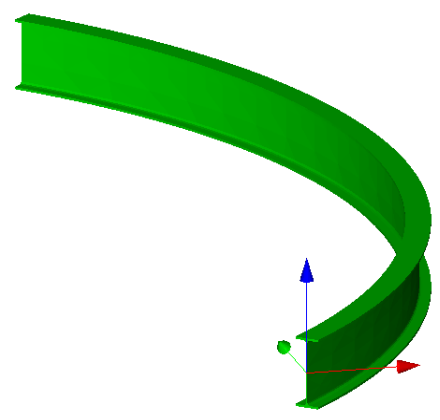

Figure 426 — tessellated curved beam visualized without edges

NOTE  There is no color information within the file, the displayed color has been set by the target application as a default.
