Figure 440 — Beam with revolution and parametric profile definition.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcBeamStandardCase |
| IfcBeamType |
| IfcRevolvedAreaSolid |
| IfcIShapeProfileDef |
| IfcMaterialProfileSetUsage |
This example illustrates a standard-case beam with revolved solid geometry, based on an parametric I-Shape profile and corresponding material profile set usage definition. Figure 440 shows the resulting shape.
|
|
|

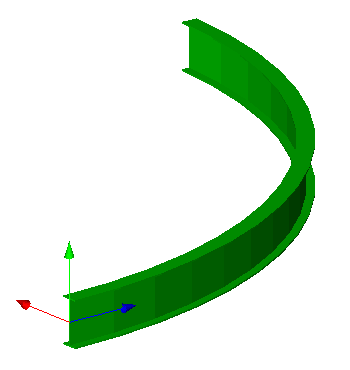

Figure 440 — Beam with revolution and parametric profile definition. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
