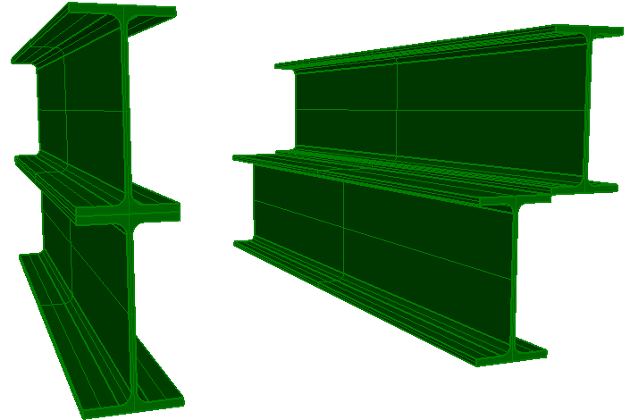

Figure 460 — Standard case beams with cardinal points.
Figure 461 — Standard case beams with transparent solids showing the axes.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcBeamStandardCase |
| IfcBeamType |
| IfcMaterialProfileSetUsage |
| IfcMaterialProfileSet |
This example illustrates four standard case beams, all with an extruded area solid and axis representation. They have different cardinal points to align the I-Shape profiles with the beam axis. Figure 460 shows the beam solids, Figure 461 shows the beam axes.
|
|
|
|
Figure 460 — Standard case beams with cardinal points. |
Figure 461 — Standard case beams with transparent solids showing the axes. |
NOTE There is no color information within the file, the displayed color and the transparency has been set by the target application as a default.
