Figure 462 — Standard case beams with varying profiles.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcBeamStandardCase |
| IfcBeamType |
| IfcIShapeProfileDef |
| IfcCircleHollowProfileDef |

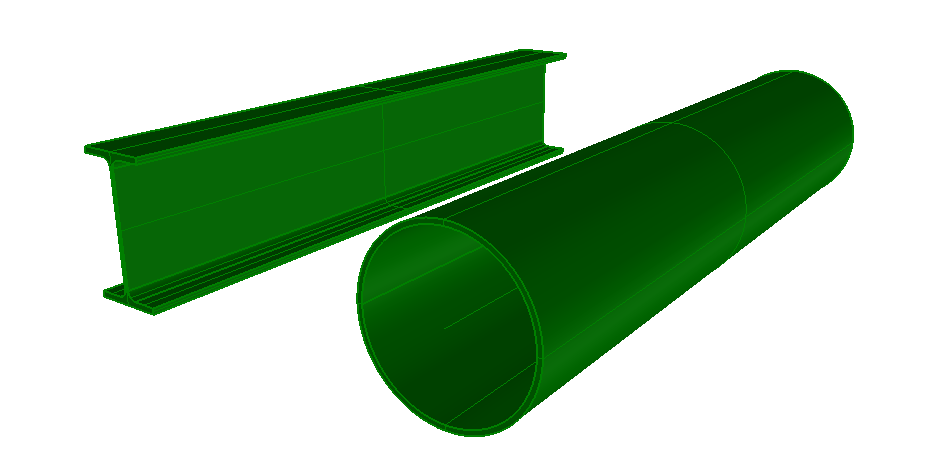

This example illustrates two standard case beams with two different profiles, one I-Shape and one Hollow-Circle profile. Figure 462 shows the resulting shape.
|
|
|
Figure 462 — Standard case beams with varying profiles. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
