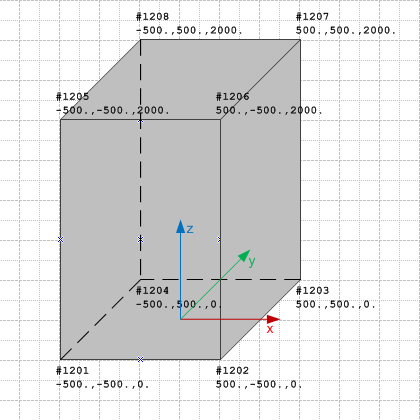

Figure 415 shows the block geometry represented by a faceted boundary representation.
Figure 415 — Basic shape represented as brep model
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcShapeRepresentation |
| IfcFacetedBrep |
The block geometry can be expressed using the boundary representation geometry model, expressing it as a faceted boundary representation.
|
|
Figure 415 shows the block geometry represented by a faceted boundary representation. |
|
Figure 415 — Basic shape represented as brep model |
