Figure 441 — Column with straight extrusion and parametric profile definition.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcColumnStandardCase |
| IfcExtrudedAreaSolid |
| IfcMaterialProfileSetUsage |
| IfcIShapeProfileDef |
| IfcColumnType |
This example illustrates a standard-case column with extruded solid geometry, based on an parametric I-Shape profile and corresponding material profile set usage definition. Figure 441 shows the resulting shape.
|
|
|

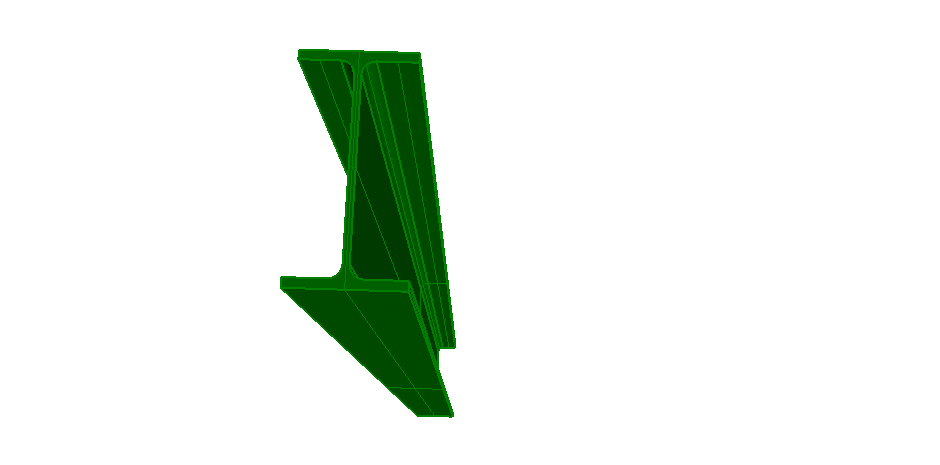

Figure 441 — Column with straight extrusion and parametric profile definition. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
