E.4.3 Column straight rectangle tessellation

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcTriangulatedFaceSet
IfcShapeRepresentation
IfcColumn

The example shows a straight column with a rectangular cross section being tessellated with a mesh. Figure 427 and Figure 428 display the rendering in a target application.

The example shows a tessellation with adding the normals at each vertex to the data set. The list of vertices given by the IfcCartesianPointList3D and the list of normals given by the IfcTriangulatedFaceSet.Normals are corresponding lists, therefore the IfcTriangulatedFaceSet.NormalIndex is not provided and the IfcTriangulatedFaceSet.CoordIndex applies to both lists.

column_rectangle_straight_tessellated_reference-view_edges column_rectangle_straight_tessellated_reference-view_shaded

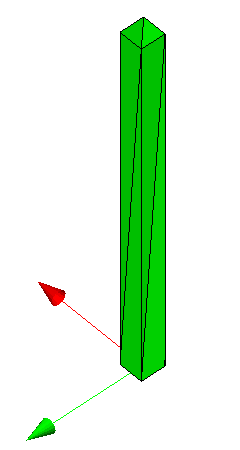

Figure 427 — tessellated rectangular
column visualized with edges visible

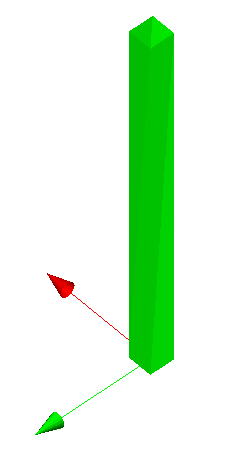

Figure 428 — tessellated rectangular
column visualized without edges

NOTE  There is no color information within the file, the displayed color has been set by the target application as a default.
