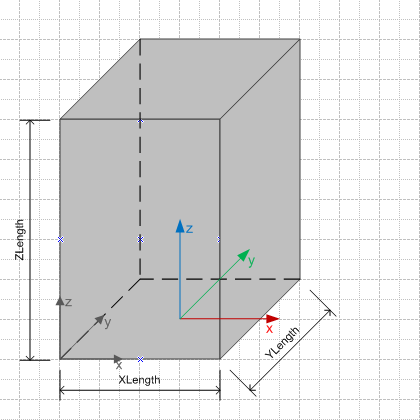

Figure 412 shows the block geometry represented by an CSG primitive.
Figure 412 — Basic shape represented as CSG primitive
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcShapeRepresentation |
| IfcCsgSolid |
| IfcBlock |
The block geometry can be expressed using the constructive solid geometry model, expressing it as a CSG primitive.
|
|
Figure 412 shows the block geometry represented by an CSG primitive. |
|
Figure 412 — Basic shape represented as CSG primitive |
