Figure 418 — Advanced shape represented as advanced Brep
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcAdvancedBrep |
| IfcBuildingElementProxy |
| IfcShapeRepresentation |

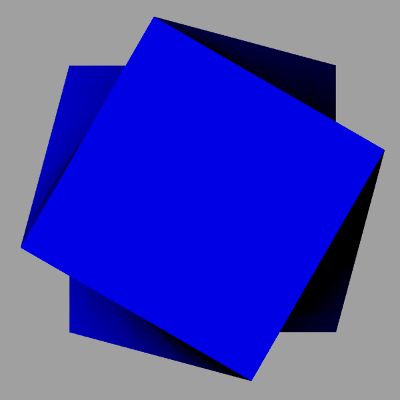

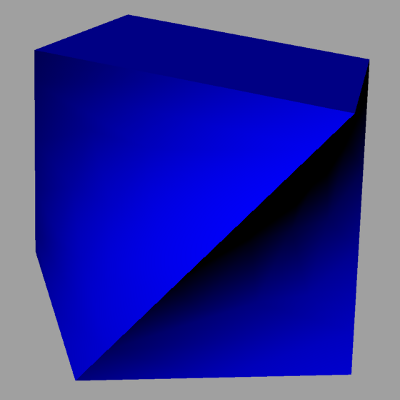

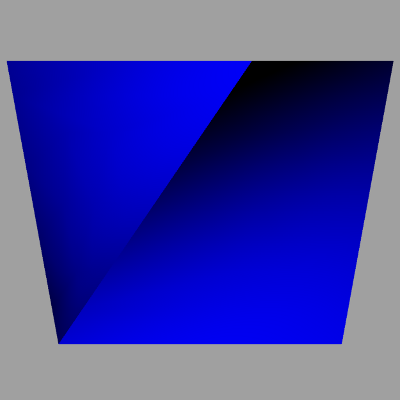

The advanced brep representation using NURBS is shown in Figure 418. It shows a twisted cube resulting in b-spline surfaces at four sides. The cube itself is exported as a proxy element.
|
|
|
|
|
|
|
|
|
Figure 418 — Advanced shape represented as advanced Brep |
||
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
