Figure 434 — Grid and columns with grid placement
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcGridPlacement |
| IfcGridAxis |
| IfcGrid |
| IfcColumn |
| IfcBeam |
This example demonstrates object placement according to grid location. It contains a single grid with 5x5 grid lines, 25 columns with grid placement and 10 beams with local placement. Figure 434 displays the grid with axis tags and the columns and beams.
|
|
|

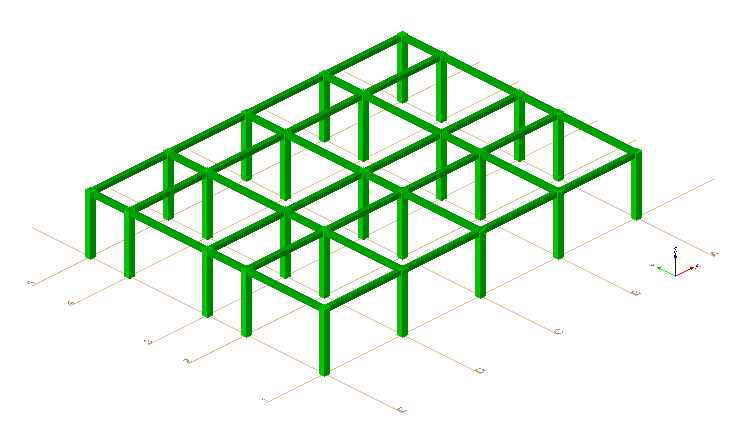

Figure 434 — Grid and columns with grid placement |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
