E.6.3 Mapped shape with multiple items

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcShapeRepresentation
IfcMappedItem
IfcRepresentationMap

The mapped representation can be generated by a mapped item placing multiple mapped representation with or without Cartesian transformations.

mapped_shape_multiple-1.png 8 KB

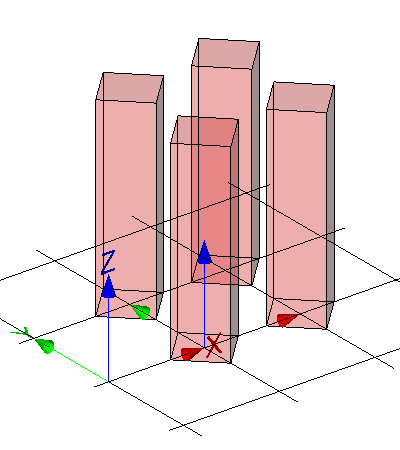

The representation map, being a simple block, is inserted four times as a mapped item for the building element proxy within its local object coordinate system. Each item is transformed by a rotation by 45' in xy plane and by a non-uniform scaling with x-scale=0.5, y-scale=0.5 and z-scale=1.0. The items are translated within the local object coordinate system to be placed in a grid of 1m x 1m. See Figure 433.

Figure 433 — Mapped representation with multiple items
