E.6.2 Mapped shape with transformation

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcShapeRepresentation
IfcMappedItem
IfcRepresentationMap

The mapped representation can be generated by a mapped item placing a mapped representation with a Cartesian transformation.

mapped_shape_transformation-1.png 5 KB

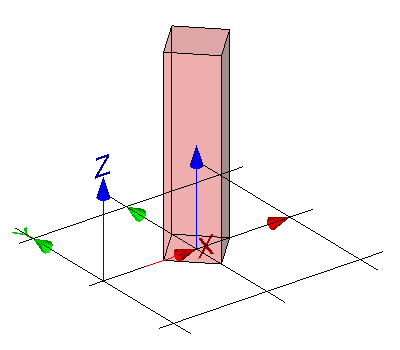

The representation map, being a simple block, is inserted as a mapped item for the building element proxy within its local object coordinate system. It is transformed by a rotation by 45' in xy plane and by a non-uniform scaling with x-scale=0.5, y-scale=0.5 and z-scale=1.0. See Figure 432.

Figure 432 — Mapped representation with transformation
