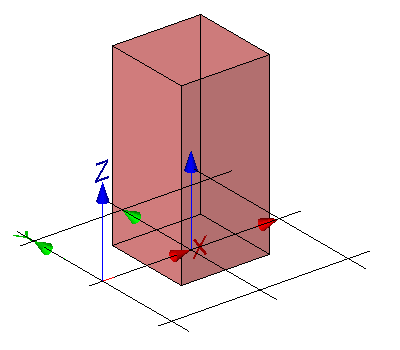

The representation map, being a simple block, is inserted as a mapped item for the building element proxy within its local object coordinate system without any transformation. See Figure 431.
Figure 431 — Mapped representation without transformation
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcShapeRepresentation |
| IfcMappedItem |
| IfcRepresentationMap |
The mapped representation can be generated by a mapped item placing a mapped representation without a Cartesian transformation.
|
|
The representation map, being a simple block, is inserted as a mapped item for the building element proxy within its local object coordinate system without any transformation. See Figure 431. |
|
Figure 431 — Mapped representation without transformation |
