Figure 464 — Reinforcing stirrup with swept disk solid geometry.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcReinforcingBar |
| IfcReinforcingBarType |
| IfcSweptDiskSolid |
| IfcIndexedPolyCurve |
This example illustrates a single reinforcing stirrup, the geometry is defined by a swept disk solid along a directrix. Figure 464 shows the resulting shape.
NOTE The directrix is defined by IfcIndexedPolyCurve
|
|
|

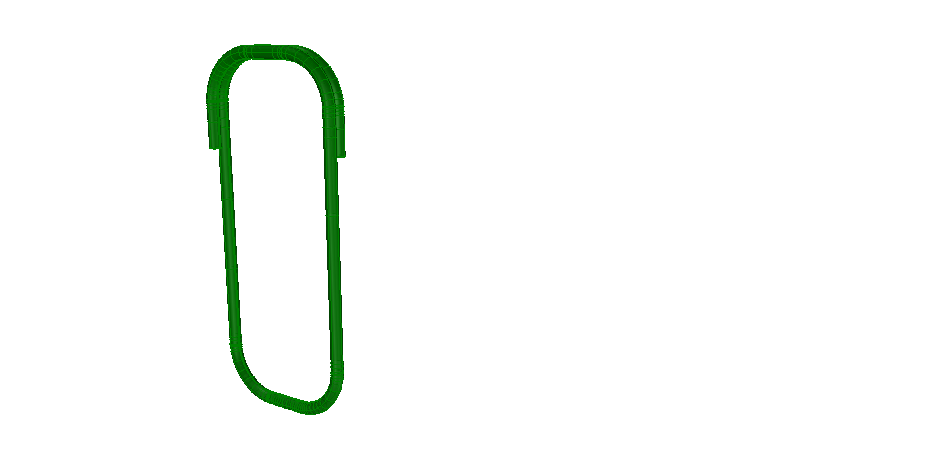

Figure 464 — Reinforcing stirrup with swept disk solid geometry. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
