Figure 465 — Standard case slab with opening and recess.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcSlabStandardCase |
| IfcOpeningStandardCase |
| IfcArbitraryClosedProfileDef |
| IfcRectangleProfileDef |
| IfcCircleProfileDef |
| IfcRelVoidsElement |
This example illustrates a standard case slab with extruded solid geometry, based on a material layer set usage definition. It includes one round opening and one rectangular recess. Figure 465 shows the resulting shape.
NOTE The opening and recess are instances of IfcOpeningStandardcase.
|
|
|

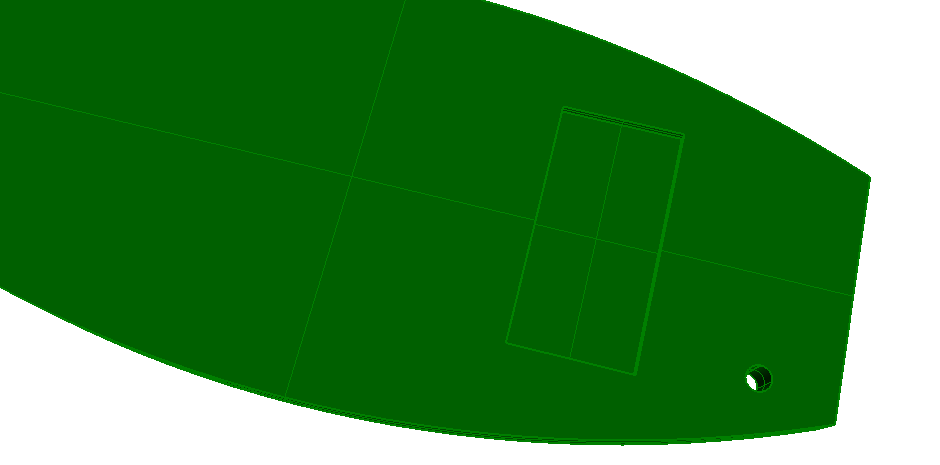

Figure 465 — Standard case slab with opening and recess. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
