E.4.4 Slab tessellated unique vertices

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcTriangulatedFaceSet
IfcShapeRepresentation
IfcSlab

The example shows a hexagonal slab being tessellated with a mesh. Figure 429 and Figure 430 display the rendering in a target application. The tessellation uses a list of unique vertices stored in the IfcCartesianPointList3D. No normals are provided.



slab_hexagon_unique-vertices slab_hexagon_unique-vertices_shaded

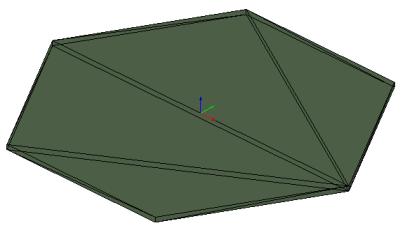

Figure 429 — tessellated hexagonal slab
visualized with edges visible

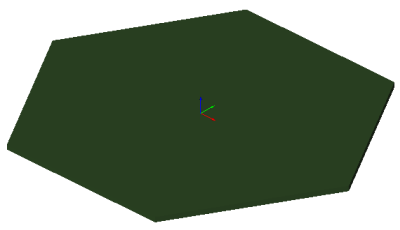

Figure 430 — tessellated hexagonal slab
visualized without edges

NOTE  There is no color information within the file, the displayed color has been set by the target application as a default. The transparency has been set in the target application.
