E.5.1 Tessellation with individual colors

FormatASCIIHTML
IFC-SPFFileMarkup
View
Common Use Definitions
Entity
IfcIndexedColourMap
IfcTriangulatedFaceSet
IfcShapeRepresentation
IfcBuildingElementProxy

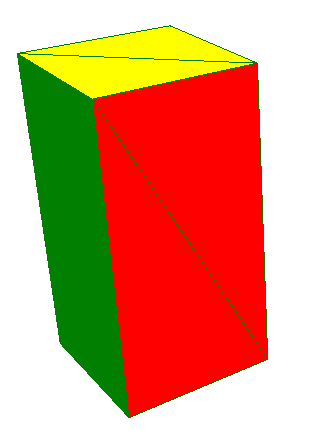

The tessellated shape representation includes an indexed colour list, providing individual colours to each face. Figure 430 shows a proxy with faces having three individual colours.

IndexedColourMap

Figure 430 — Tessellation with indexed colours for faces
