Figure 443 — Standard case wall with material layer set.
| Format | ASCII | HTML |
|---|---|---|
| IFC-SPF | File | Markup |
| View |
|---|
| Common Use Definitions |
| Entity |
|---|
| IfcWallStandardCase |
| IfcWallType |
| IfcExtrudedAreaSolid |
| IfcRectangleProfileDef |
| IfcMaterialLayerSetUsage |
This example illustrates a standard-case wall with extruded solid geometry, based on a material layer set usage definition. Figure 443 shows the resulting shape.
NOTE The extruded profile is defined by IfcRectangleProfileDef
|
|
|

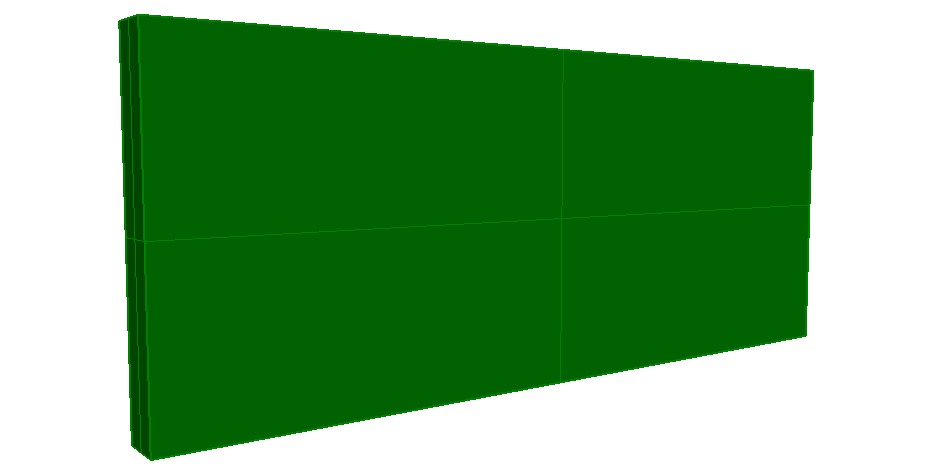

Figure 443 — Standard case wall with material layer set. |
NOTE There is no color information within the file, the displayed color has been set by the target application as a default.
