4.8.2.3.2 Annotation 3D Geometry

The 'Annotation 3D Geometry' is used, when the representation of the annotation does includes surfaces and is not restricted to two-dimensional representation items.

The following attribute values for the IfcShapeRepresentation holding this geometric representation shall be used:

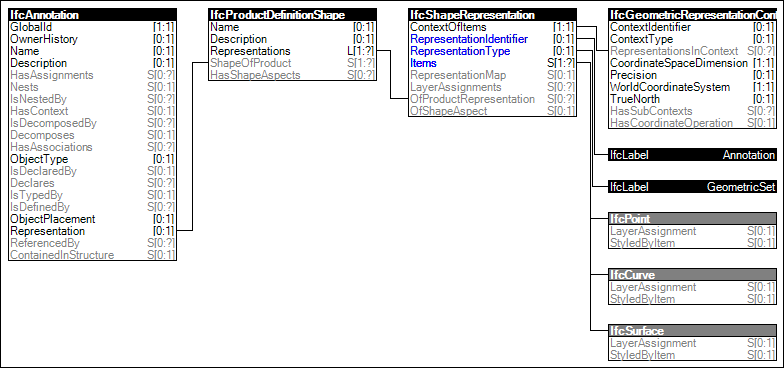

Figure 69 illustrates an instance diagram.

Annotation 3D GeometryIfcAnnotationIfcProductDefinitionShapeIfcShapeRepresentationIfcGeometricRepresentationContextIfcLabelIfcLabelIfcPointIfcCurveIfcSurface

Figure 69 — Annotation 3D Geometry

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="0f213846-fe15-4607-a66a-b33e98cb5887" name="Annotation 3D Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcAnnotation">
  <Rules>
    <AttributeRule AttributeName="Representation">
      <EntityRules>
        <EntityRule EntityName="IfcProductDefinitionShape">
          <AttributeRules>
            <AttributeRule AttributeName="Representations">
              <EntityRules>
                <EntityRule EntityName="IfcShapeRepresentation">
                  <AttributeRules>
                    <AttributeRule AttributeName="ContextOfItems">
                      <EntityRules>
                        <EntityRule EntityName="IfcGeometricRepresentationContext" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <Constraints>
                            <Constraint Expression="Identifier[Value] = 'Annotation'" />
                          </Constraints>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Type" AttributeName="RepresentationType">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel">
                          <Constraints>
                            <Constraint Expression="Type[Value] = 'GeometricSet'" />
                          </Constraints>
                        </EntityRule>
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule RuleID="Items" AttributeName="Items">
                      <EntityRules>
                        <EntityRule EntityName="IfcPoint" />
                        <EntityRule EntityName="IfcCurve" />
                        <EntityRule EntityName="IfcSurface" />
                      </EntityRules>
                    </AttributeRule>
                  </AttributeRules>
                </EntityRule>
              </EntityRules>
            </AttributeRule>
            <AttributeRule AttributeName="Name" />
            <AttributeRule AttributeName="Description" />
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
