4.11.2.2 Area Quantity

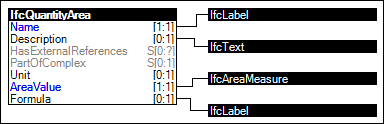

Figure 112 illustrates an instance diagram.

Area QuantityIfcQuantityAreaIfcLabelIfcTextIfcAreaMeasureIfcLabel

Figure 112 — Area Quantity

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="65ac4747-6eff-437e-94e2-643fd4e3bf86" name="Area Quantity" status="sample" applicableSchema="IFC4" applicableEntity="IfcQuantityArea">
  <Rules>
    <AttributeRule RuleID="QuantityName" AttributeName="Name">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="Description">
      <EntityRules>
        <EntityRule EntityName="IfcText" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule RuleID="AreaValue" AttributeName="AreaValue">
      <EntityRules>
        <EntityRule EntityName="IfcAreaMeasure" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="Formula">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
