4.6.2 Control Assignment

Controls may have assignments indicating objects that must observe the established requirements. An example of such assignment is a labor resource assigned to a calendar.

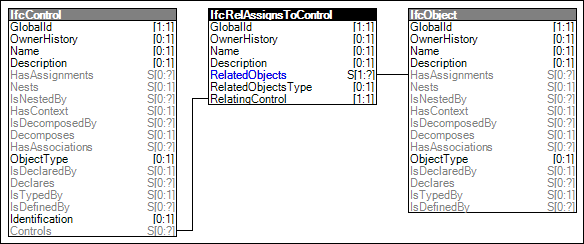

Figure 44 illustrates an instance diagram.

Control AssignmentIfcControlIfcRelAssignsToControlIfcObject

Figure 44 — Control Assignment

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="813e73fe-5641-4648-a680-8887cf4359f1" name="Control Assignment" status="sample" applicableSchema="IFC4" applicableEntity="IfcControl">
  <Rules>
    <AttributeRule AttributeName="Controls">
      <EntityRules>
        <EntityRule EntityName="IfcRelAssignsToControl">
          <AttributeRules>
            <AttributeRule RuleID="Type" AttributeName="RelatedObjects">
              <EntityRules>
                <EntityRule EntityName="IfcObject" />
              </EntityRules>
            </AttributeRule>
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
