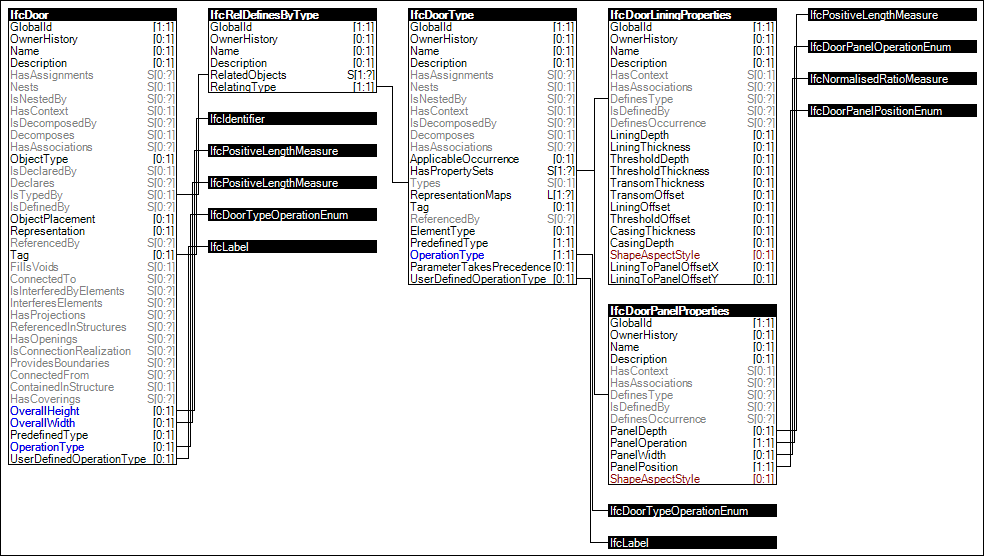

Figure 20 — Door Attributes
Doors may be further described by their size and operation type.
Figure 20 illustrates an instance diagram.
|
Figure 20 — Door Attributes |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="1e5da429-cf7c-4f23-8b32-53ad98e238ad" name="Door Attributes" status="sample" applicableSchema="IFC4" applicableEntity="IfcDoor">
<Rules>
<AttributeRule AttributeName="Tag">
<EntityRules>
<EntityRule EntityName="IfcIdentifier" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="OverallHeight" AttributeName="OverallHeight">
<EntityRules>
<EntityRule EntityName="IfcPositiveLengthMeasure" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="OverallWidth" AttributeName="OverallWidth">
<EntityRules>
<EntityRule EntityName="IfcPositiveLengthMeasure" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="OperationType" AttributeName="OperationType">
<EntityRules>
<EntityRule EntityName="IfcDoorTypeOperationEnum" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="UserDefinedOperationType">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="IsTypedBy">
<EntityRules>
<EntityRule EntityName="IfcRelDefinesByType">
<AttributeRules>
<AttributeRule AttributeName="RelatingType">
<EntityRules>
<EntityRule EntityName="IfcDoorType">
<AttributeRules>
<AttributeRule RuleID="TypeOperationType" AttributeName="OperationType">
<EntityRules>
<EntityRule EntityName="IfcDoorTypeOperationEnum" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="UserDefinedOperationType">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="HasPropertySets">
<EntityRules>
<EntityRule EntityName="IfcDoorLiningProperties">
<AttributeRules>
<AttributeRule AttributeName="LiningDepth" />
<AttributeRule AttributeName="LiningThickness" />
<AttributeRule AttributeName="ThresholdDepth" />
<AttributeRule AttributeName="ThresholdThickness" />
<AttributeRule AttributeName="TransomThickness" />
<AttributeRule AttributeName="TransomOffset" />
<AttributeRule AttributeName="LiningOffset" />
<AttributeRule AttributeName="ThresholdOffset" />
<AttributeRule AttributeName="CasingThickness" />
<AttributeRule AttributeName="CasingDepth" />
<AttributeRule AttributeName="LiningToPanelOffsetX" />
<AttributeRule AttributeName="LiningToPanelOffsetY" />
</AttributeRules>
</EntityRule>
<EntityRule EntityName="IfcDoorPanelProperties">
<AttributeRules>
<AttributeRule AttributeName="PanelDepth">
<EntityRules>
<EntityRule EntityName="IfcPositiveLengthMeasure" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="PanelOperation">
<EntityRules>
<EntityRule EntityName="IfcDoorPanelOperationEnum" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="PanelWidth">
<EntityRules>
<EntityRule EntityName="IfcNormalisedRatioMeasure" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="PanelPosition">
<EntityRules>
<EntityRule EntityName="IfcDoorPanelPositionEnum" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
