Figure 42 — Element Projecting

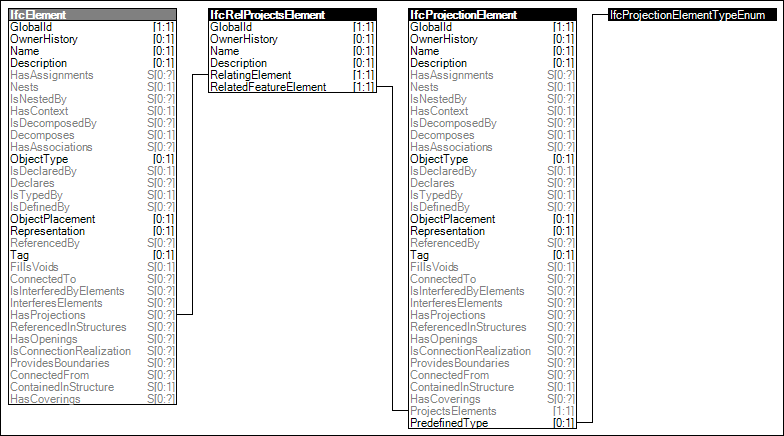

Figure 42 illustrates an instance diagram.
|
Figure 42 — Element Projecting |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="14891e19-2eaa-4641-8913-629bb9a60801" name="Element Projecting" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
<Rules>
<AttributeRule AttributeName="HasProjections">
<EntityRules>
<EntityRule EntityName="IfcRelProjectsElement">
<AttributeRules>
<AttributeRule AttributeName="RelatedFeatureElement">
<EntityRules>
<EntityRule EntityName="IfcProjectionElement">
<AttributeRules>
<AttributeRule AttributeName="PredefinedType">
<EntityRules>
<EntityRule EntityName="IfcProjectionElementTypeEnum" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
