4.1.6 Project Document Information

Projects may define external documents, which may be used to attach arbitrary information to objects contained within the same project or referencing projects.

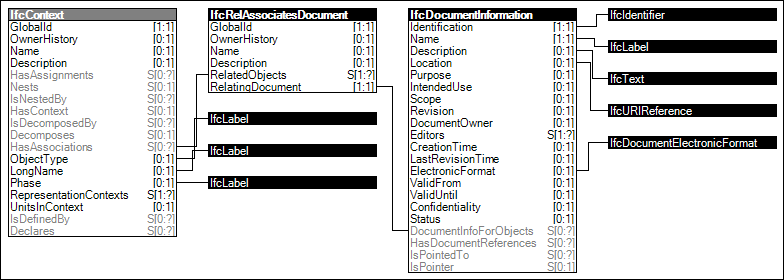

Figure 7 illustrates an instance diagram.

Project Document InformationIfcContextIfcRelAssociatesDocumentIfcDocumentInformationIfcIdentifierIfcLabelIfcTextIfcURIReferenceIfcLabelIfcLabelIfcLabel

Figure 7 — Project Document Information

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="627f19f8-d2ee-4b19-a13c-e5149018b976" name="Project Document Information" status="sample" applicableSchema="IFC4" applicableEntity="IfcContext">
  <Rules>
    <AttributeRule AttributeName="HasAssociations">
      <EntityRules>
        <EntityRule EntityName="IfcRelAssociatesDocument">
          <AttributeRules>
            <AttributeRule AttributeName="RelatingDocument">
              <EntityRules>
                <EntityRule EntityName="IfcDocumentInformation">
                  <AttributeRules>
                    <AttributeRule AttributeName="Location">
                      <EntityRules>
                        <EntityRule EntityName="IfcURIReference" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule AttributeName="ElectronicFormat">
                      <EntityRules>
                        <EntityRule EntityName="IfcDocumentElectronicFormat" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule AttributeName="Identification">
                      <EntityRules>
                        <EntityRule EntityName="IfcIdentifier" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule AttributeName="Name">
                      <EntityRules>
                        <EntityRule EntityName="IfcLabel" />
                      </EntityRules>
                    </AttributeRule>
                    <AttributeRule AttributeName="Description">
                      <EntityRules>
                        <EntityRule EntityName="IfcText" />
                      </EntityRules>
                    </AttributeRule>
                  </AttributeRules>
                </EntityRule>
              </EntityRules>
            </AttributeRule>
          </AttributeRules>
        </EntityRule>
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="Phase">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="ObjectType">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="LongName">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
