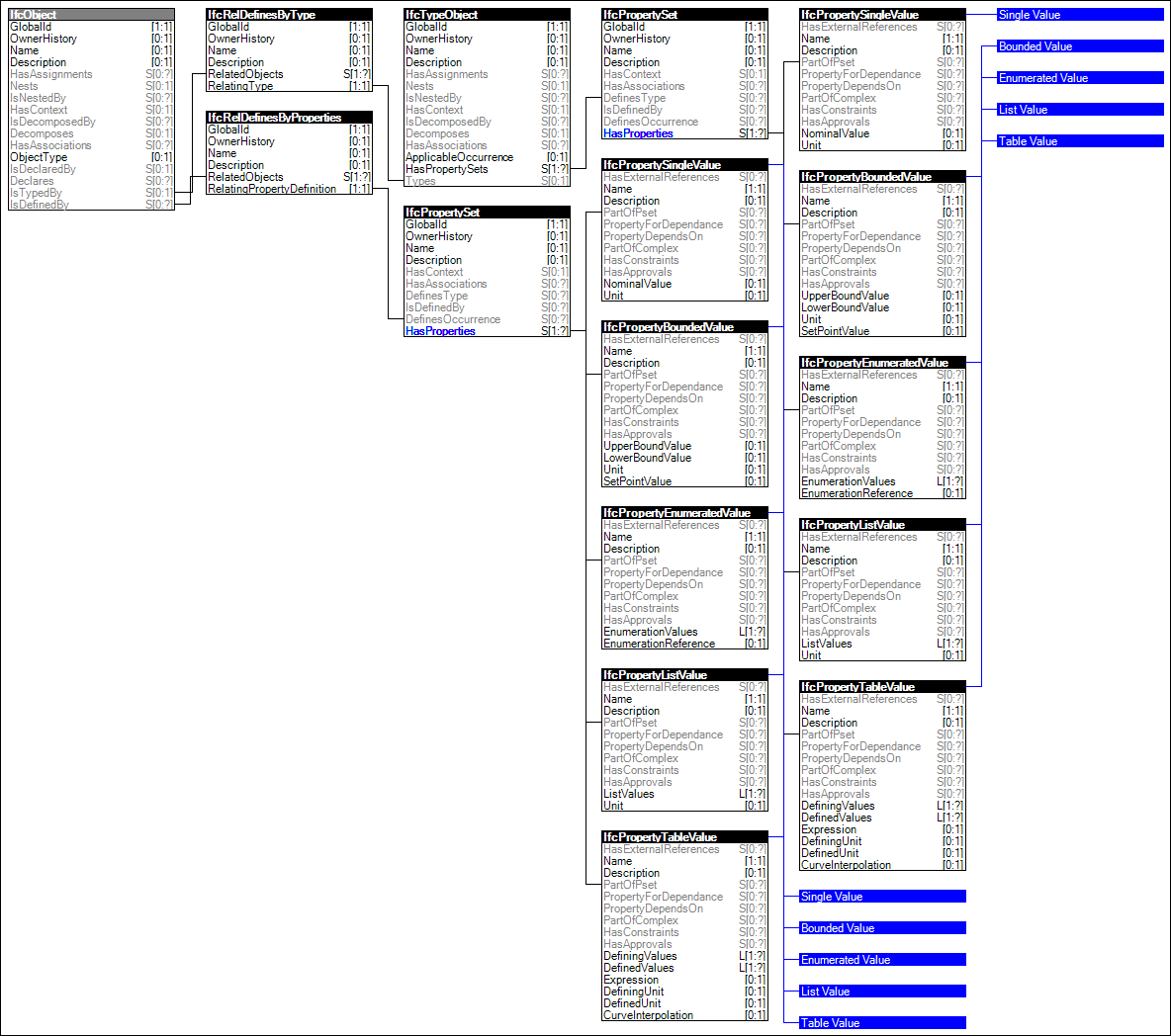

Figure 11 — Property Sets with Override
Figure 11 illustrates an instance diagram.
|
Figure 11 — Property Sets with Override |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="e26040e8-82e2-4f6a-bc63-ac8e6da2d0ae" name="Property Sets with Override" status="sample" applicableSchema="IFC4" applicableEntity="IfcObject">
<Rules>
<AttributeRule RuleID="PredefinedType" AttributeName="PredefinedType" />
<AttributeRule AttributeName="IsDefinedBy">
<EntityRules>
<EntityRule EntityName="IfcRelDefinesByProperties">
<AttributeRules>
<AttributeRule AttributeName="RelatingPropertyDefinition">
<EntityRules>
<EntityRule EntityName="IfcPropertySet">
<AttributeRules>
<AttributeRule RuleID="PsetName" AttributeName="Name" />
<AttributeRule RuleID="Properties" AttributeName="HasProperties">
<EntityRules>
<EntityRule EntityName="IfcPropertySingleValue">
<References>
<Template ref="6655f6d0-29a8-47b8-8f3d-c9fce9c9a620" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyBoundedValue">
<References>
<Template ref="3d67a2d2-761d-44d9-a09e-b7fbb1fa5632" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyEnumeratedValue">
<References>
<Template ref="c148a099-c351-43a8-9266-5f3de0b45a95" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyListValue">
<References>
<Template ref="8e10b688-9179-4e3a-8db2-6abcaafe952d" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyTableValue">
<References>
<Template ref="35c947b0-6abc-4b13-8ec7-696ef2041721" />
</References>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="IsTypedBy">
<EntityRules>
<EntityRule EntityName="IfcRelDefinesByType">
<AttributeRules>
<AttributeRule AttributeName="RelatingType">
<EntityRules>
<EntityRule EntityName="IfcTypeObject">
<AttributeRules>
<AttributeRule AttributeName="HasPropertySets">
<EntityRules>
<EntityRule EntityName="IfcPropertySet">
<AttributeRules>
<AttributeRule RuleID="TypePsetName" AttributeName="Name" />
<AttributeRule RuleID="TypeProperties" AttributeName="HasProperties">
<EntityRules>
<EntityRule EntityName="IfcPropertySingleValue">
<References IdPrefix="Type">
<Template ref="6655f6d0-29a8-47b8-8f3d-c9fce9c9a620" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyBoundedValue">
<References IdPrefix="Type">
<Template ref="3d67a2d2-761d-44d9-a09e-b7fbb1fa5632" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyEnumeratedValue">
<References IdPrefix="Type">
<Template ref="c148a099-c351-43a8-9266-5f3de0b45a95" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyListValue">
<References IdPrefix="Type">
<Template ref="8e10b688-9179-4e3a-8db2-6abcaafe952d" />
</References>
</EntityRule>
<EntityRule EntityName="IfcPropertyTableValue">
<References IdPrefix="Type">
<Template ref="35c947b0-6abc-4b13-8ec7-696ef2041721" />
</References>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
