Figure 102 — Resource Cost
Resources can have associated costs indicating financial costs and environmental impacts incurred according to a specified base quantity.
Each cost value may be defined using a constant amount or calculated according to specified formula.

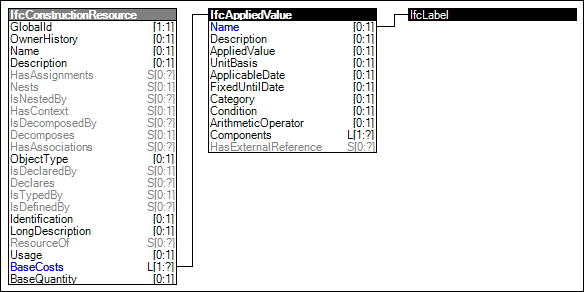

Figure 102 illustrates an instance diagram.
|
Figure 102 — Resource Cost |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="678111f9-565e-4c1d-b8c3-d218c4ccd056" name="Resource Cost" status="sample" applicableSchema="IFC4" applicableEntity="IfcConstructionResource">
<Rules>
<AttributeRule RuleID="CostType" AttributeName="BaseCosts">
<EntityRules>
<EntityRule EntityName="IfcAppliedValue">
<AttributeRules>
<AttributeRule RuleID="CostName" AttributeName="Name">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="ValueType" AttributeName="AppliedValue" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
