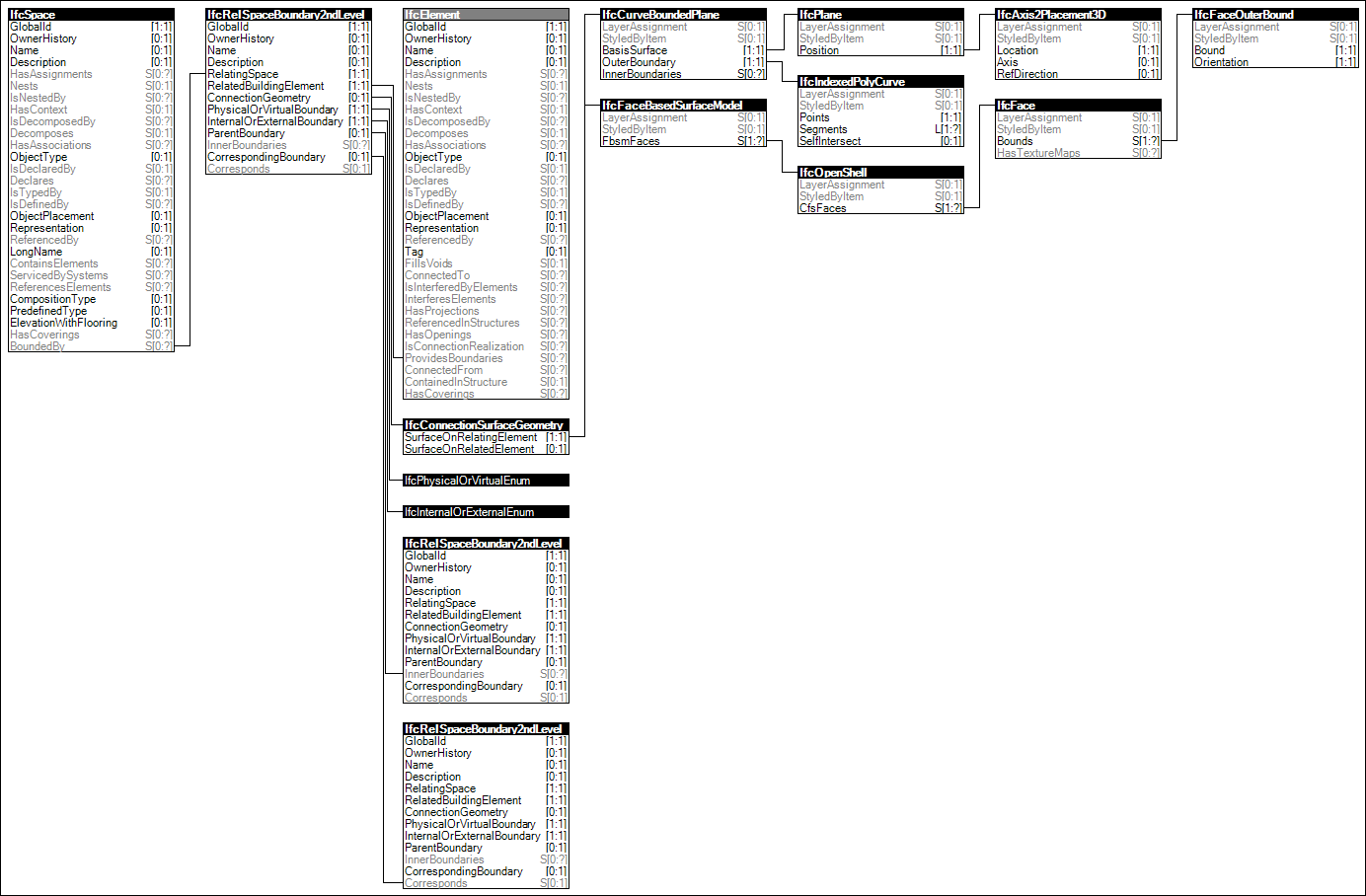

Figure 54 — Space Boundaries 2nd Level
Figure 54 illustrates an instance diagram.
|
Figure 54 — Space Boundaries 2nd Level |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="c6047bf3-576d-4042-8e84-7f22a4cca95f" name="Space Boundaries 2nd Level" status="sample" applicableSchema="IFC4" applicableEntity="IfcSpace">
<Rules>
<AttributeRule AttributeName="BoundedBy">
<EntityRules>
<EntityRule EntityName="IfcRelSpaceBoundary2ndLevel">
<AttributeRules>
<AttributeRule AttributeName="RelatedBuildingElement">
<EntityRules>
<EntityRule EntityName="IfcElement" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="ConnectionGeometry">
<EntityRules>
<EntityRule EntityName="IfcConnectionSurfaceGeometry">
<AttributeRules>
<AttributeRule AttributeName="SurfaceOnRelatingElement">
<EntityRules>
<EntityRule EntityName="IfcCurveBoundedPlane">
<AttributeRules>
<AttributeRule AttributeName="BasisSurface">
<EntityRules>
<EntityRule EntityName="IfcPlane">
<AttributeRules>
<AttributeRule AttributeName="Position">
<EntityRules>
<EntityRule EntityName="IfcAxis2Placement3D" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="OuterBoundary">
<EntityRules>
<EntityRule EntityName="IfcIndexedPolyCurve" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
<EntityRule EntityName="IfcFaceBasedSurfaceModel">
<AttributeRules>
<AttributeRule AttributeName="FbsmFaces">
<EntityRules>
<EntityRule EntityName="IfcOpenShell">
<AttributeRules>
<AttributeRule AttributeName="CfsFaces">
<EntityRules>
<EntityRule EntityName="IfcFace">
<AttributeRules>
<AttributeRule AttributeName="Bounds">
<EntityRules>
<EntityRule EntityName="IfcFaceOuterBound" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="PhysicalOrVirtualBoundary">
<EntityRules>
<EntityRule EntityName="IfcPhysicalOrVirtualEnum" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="InternalOrExternalBoundary">
<EntityRules>
<EntityRule EntityName="IfcInternalOrExternalEnum" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="ParentBoundary">
<EntityRules>
<EntityRule EntityName="IfcRelSpaceBoundary2ndLevel" />
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="CorrespondingBoundary">
<EntityRules>
<EntityRule EntityName="IfcRelSpaceBoundary2ndLevel" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
