Figure 77 — Surface Geometry
Elements may have a 'Surface' representation describing the outer surface of the object. Such representation may be used for hit-testing objects having part composition such as framed walls, or for defining thermal boundaries idealized at the middle plane of an element.
The representation identifier of the surface representation is:

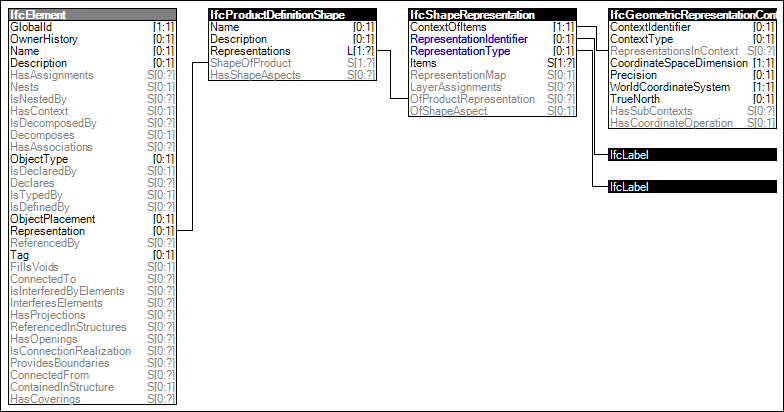

Figure 77 illustrates an instance diagram.
|
Figure 77 — Surface Geometry |
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="2e99de70-fb73-478f-9bca-4fedfdeb4ea5" name="Surface Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
<Rules>
<AttributeRule AttributeName="Representation">
<EntityRules>
<EntityRule EntityName="IfcProductDefinitionShape">
<AttributeRules>
<AttributeRule AttributeName="Representations">
<EntityRules>
<EntityRule EntityName="IfcShapeRepresentation">
<AttributeRules>
<AttributeRule AttributeName="ContextOfItems">
<EntityRules>
<EntityRule EntityName="IfcGeometricRepresentationContext" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
<EntityRules>
<EntityRule EntityName="IfcLabel">
<AttributeRules>
<AttributeRule Description="Value=Surface" AttributeName="Value=Surface" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Type" AttributeName="RepresentationType">
<EntityRules>
<EntityRule EntityName="IfcLabel" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Items" AttributeName="Items" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="Name" />
<AttributeRule AttributeName="Description" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
<SubTemplates>
<ConceptTemplate uuid="bd82983d-39d5-41b2-9ee8-f3bd8777d315" name="Surface 3D Geometry" status="sample" applicableSchema="IFC4" applicableEntity="IfcElement">
<Rules>
<AttributeRule AttributeName="Representation">
<EntityRules>
<EntityRule EntityName="IfcProductDefinitionShape">
<AttributeRules>
<AttributeRule AttributeName="Representations">
<EntityRules>
<EntityRule EntityName="IfcShapeRepresentation">
<AttributeRules>
<AttributeRule AttributeName="ContextOfItems">
<EntityRules>
<EntityRule EntityName="IfcGeometricRepresentationContext" />
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Identifier" AttributeName="RepresentationIdentifier">
<EntityRules>
<EntityRule EntityName="IfcLabel">
<AttributeRules>
<AttributeRule Description="Value=Surface" AttributeName="Value=Surface" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Type" AttributeName="RepresentationType">
<EntityRules>
<EntityRule EntityName="IfcLabel">
<Constraints>
<Constraint Expression="Type[Value] = 'Surface3D'" />
</Constraints>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule RuleID="Items" AttributeName="Items">
<EntityRules>
<EntityRule EntityName="IfcBoundedSurface" />
<EntityRule EntityName="IfcSweptSurface" />
</EntityRules>
</AttributeRule>
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
<AttributeRule AttributeName="Name" />
<AttributeRule AttributeName="Description" />
</AttributeRules>
</EntityRule>
</EntityRules>
</AttributeRule>
</Rules>
</ConceptTemplate>
</SubTemplates>
</ConceptTemplate>
