4.11.2.3 Volume Quantity

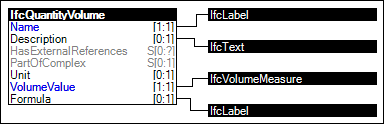

Figure 113 illustrates an instance diagram.

Volume QuantityIfcQuantityVolumeIfcLabelIfcTextIfcVolumeMeasureIfcLabel

Figure 113 — Volume Quantity

mvdXML Specification
<?xml version="1.0"?>
<ConceptTemplate xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="6491a3b0-b7e9-412a-8226-bcd91c2b0b0e" name="Volume Quantity" status="sample" applicableSchema="IFC4" applicableEntity="IfcQuantityVolume">
  <Rules>
    <AttributeRule RuleID="QuantityName" AttributeName="Name">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="Description">
      <EntityRules>
        <EntityRule EntityName="IfcText" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule RuleID="VolumeValue" AttributeName="VolumeValue">
      <EntityRules>
        <EntityRule EntityName="IfcVolumeMeasure" />
      </EntityRules>
    </AttributeRule>
    <AttributeRule AttributeName="Formula">
      <EntityRules>
        <EntityRule EntityName="IfcLabel" />
      </EntityRules>
    </AttributeRule>
  </Rules>
</ConceptTemplate>
