Animator Component

Switch to Scripting

The Animator component is used to assign animation to a GameObject in your scene. The Animator component requires a reference to an Animator Controller which defines which animation clips to use, and controls when and how to blend and transition between them.

If the GameObject is a humanoid character with an Avatar definition, the Avatar should also be assigned in this component, as seen here:

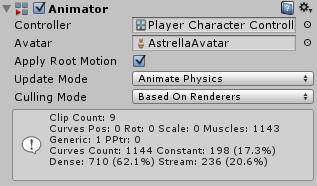

The Animator component with a controller and avatar assigned.
The Animator component with a controller and avatar assigned.

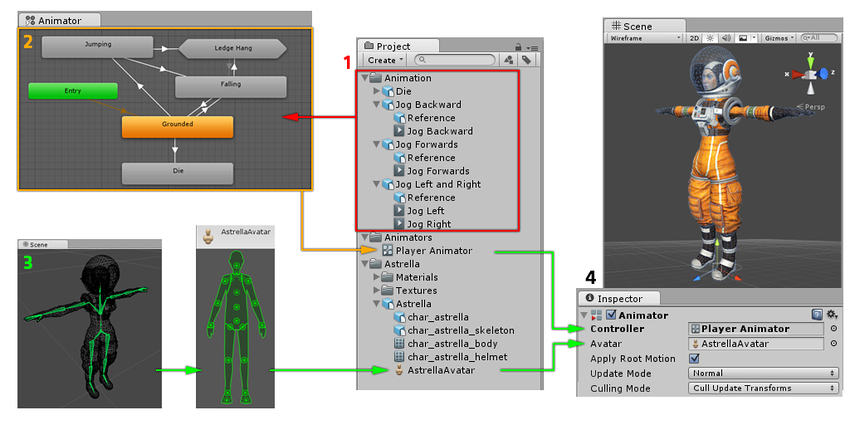

This diagram shows how the various assets (Animation Clips, an Animator Controller, and an Avatar) are all brought together in an Animator Component on a Game Object:

Diagram showing how the various parts of the animation system connect together
Diagram showing how the various parts of the animation system connect together

See Also State Machines, Blend Trees, Avatar, Animator Controller

Properties

Property: Function:
Controller The animator controller attached to this character.
Avatar The Avatar for this character. (If the Animator is being used to animate a humanoid character)
Apply Root Motion Should we control the character’s position and rotation from the animation itself or from script.
Update Mode This allows you to select when the Animator updates, and which timescale it should use.
        Normal The animator is updated in-sync with the Update call, and the animator’s speed matches the current timescale. If the timescale is slowed, animations will slow down to match.
        Animate Physics The animator is updated in-sync with the FixedUpdate call (i.e. in lock-step with the physics system). You should use this mode if you are animating the motion of objects with physics interactions, such as characters which can push rigidbody objects around.
        Unscaled Time The animator is updated in-sync with the Update call, but the animator’s speed ignores the current timescale and animates at 100% speed regardless. This is useful for animating a GUI system at normal speed while using modified timescales for special effects or to pause gameplay.
Culling Mode Culling mode you can choose for animations.
        Always Animate Always animate, don’t do culling even when offscreen.
        Cull Update Transforms Retarget, IK and write of Transforms are disabled when renderers are not visible.
        Cull Completely Animation is completely disabled when renderers are not visible.

Animation curve information

The information box at the bottom of the Animator component provides you with a breakdown of the data being used in all the clips used by the Animator Controller.

An animation clip contains data in the form of “curves”, which represent how a value changes over time. These curves may describe the position or rotation of an object, the flex of a muscle in the humanoid animation system, or other animated values within the clip such as a changing material colour.

This table explains what each item of data represents:

Label Description
Clip Count The total number of animation clips used by the animator controller assigned to this Animator.
Curves (Pos, Rot & Scale) The total number of curves used to animate the position, rotation or scale of objects. These are for animated objects that are not part of a standard humanoid rig. When animating a humanoid avatar, these curves would show up a count for extra non-muscle bones such as a tail, flowing cloth or a dangling pendant. If you have a humanoid animation and you notice unexpected non-muscle animation curves, you mave have unnecessary animation curves in your animation files.
Muscles The number of muscle animation curves used for humanoid animation by this Animator. These are the curves used to animate the standard humanoid avatar muscles. As well as the standard muscle movements for all the humanoid bones in Unity’s standard avatar, this also includes two “muscle curves” which store the root motion position and rotation animation.
Generic The number of numeric (float) curves used by the animator to animate other properties such as material colour.
PPtr The total count of sprite animation curves (used by Unity’s 2d system)
Curves Count The total combined number of animation curves
Constant The number of animation curves that are optimised as constant (unchanging) values. Unity selects this automatically if your animation files contain curves with unchanging values.
Dense The number of animation curves that are optimised using the “dense” method of storing data (discrete values which are interpolated between linearly). This method uses less significantly less memory than the “stream” method.
Stream The number of animation curves using the “stream” method of storing data (values with time and tangent data for curved interpolation). This data occupies significantly more memory than the “dense” method.

If your animation clips are imported with “Anim Compression” set to “Optimal” in the Animation Import Settings, Unity will use a heuristic algorithm to determine whether it is best to use the dense or stream method to store the data for each curve.
