NavMesh Agent
NavMeshAgent components help you to create characters which avoid each other while moving towards their goal. Agents reason about the game world using the NavMesh and they know how to avoid each other as well as other moving obstacles. Pathfinding and spatial reasoning are handled using the scripting API of the NavMesh Agent.

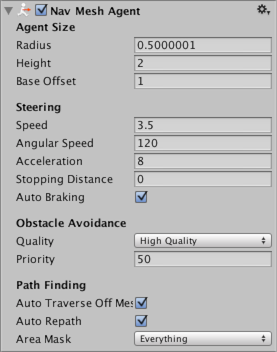

Properties
| Property | Function |
|---|---|
| Agent Size | |
| Radius | Radius of the agent, used to calculate collisions between obstacles and other agents. |
| Height | The height clearance the agent needs to pass below an obstacle overhead. |
| Base offset | Offset of the collision cylinder in relation to the transform pivot point. |
| Steering | |
| Speed | Maximum movement speed (in world units per second). |
| Angular Speed | Maximum speed of rotation (degrees per second). |
| Acceleration | Maximum acceleration (in world units per second squared). |
| Stopping distance | The agent will stop when this close to the goal location. |
| Auto Braking | When enabled, the agent will slow down when reaching the destination. You should disable this for behaviors such patrolling, where the agent should move smoothly between multiple points |
| Obstacle Avoidance | |
| Quality | Obstacle avoidance quality. If you have high number of agents you can save CPU time by reducing the obstacle avoidance quality. Setting avoidance to none, will only resolve collision, but will not try to actively avoid other agents and obstacles. |
| Priority | Agents of lower priority will be ignored by this agent when performing avoidance. The value should be in the range 0–99 where lower numbers indicate higher priority. |
| Path Finding | |
| Auto Traverse OffMesh Link | Set to true to automatically traverse off-mesh links. You should turn this off when you you want to use animation or some specific way to traverse off-mesh links. |
| Auto Repath | When enabled the agent will try to find path again when it reaches the end of a partial path. When there is no path to the destination, a partial path is generated to the closest reachable location to the destination. |
| Area Mask | Area mask describes which area types the agent will consider when finding a path. When you prepare meshes for NavMesh baking, you can set each meshes area type. For example you can mark stairs with special area type, and forbid some character types from using the stairs. |
Details
The agent is defined by an upright cylinder whose size is specified by the Radius and Height properties. The cylinder moves with the object but always remains upright even if the object itself rotates. The shape of the cylinder is used to detect and respond to collisions between other agents and obstacles. When the GameObject’s anchor point is not at the base of the cylinder, you can use the Base Offset property to take up the height difference.
The height and radius of the cylinder are actually specified in two different places: the NavMesh bake settings and the properties of the individual agents.
- NavMesh bake settings describe how all the NavMesh Agents are colliding or avoiding the static world geometry. In order to keep memory on budget and CPU load in check, only one size can be specified in the bake settings.
- NavMesh Agent properties values describe how the agent collides with moving obstacles and other agents.
Most often you set the size of the agent the same in both places. But, for example, a heavy soldier may have larger radius, so that other agents will leave more space around him, but otherwise he’ll avoid the environment just the same.
