IfcAxis2Placement2D

Natural language names
deEinfügepunkt mit zwei Achsen - zweidimensionaler Raum (2D)
enAxis2 Placement2 D
Semantic definitions at the entity
Entity definition

The IfcAxis2Placement2D provides location and orientation to place items in a two-dimensional space. The attribute RefDirection defines the x axis, the y axis is derived. If the attribute RefDirection is not given, the placement defaults to P[1] (x-axis) as [1.,0.] and P[2] (y-axis) as [0.,1.].

axis2 placement 2D

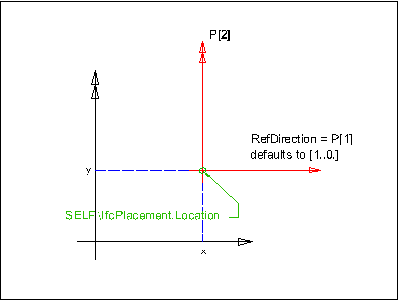

Figure 337 illustrates the definition of the IfcAxis2Placement2D within the two-dimensional coordinate system.

Figure 337 — Axis2 placement 2D


NOTE  Definition according to ISO/CD 10303-42:1992
The location and orientation in two dimensional space of two mutually perpendicular axes. An axis2_placement_2d is defined in terms of a point, (inherited from the placement supertype), and an axis. It can be used to locate and originate an object in two dimensional space and to define a placement coordinate system. The entity includes a point which forms the origin of the placement coordinate system. A direction vector is required to complete the definition of the placement coordinate system. The reference direction defines the placement X axis direction, the placement Y axis is derived from this.
NOTE  Entity adapted from axis2_placement_2d defined in ISO 10303-42.
HISTORY  New entity in IFC1.5.
Attribute definitions
#AttributeTypeCardinalityDescription C
2RefDirectionIfcDirection[0:1] The direction used to determine the direction of the local X axis. If a value is omited that it defaults to [1.0, 0.0.]. X
P
:=IfcBuild2Axes(RefDirection)
IfcDirectionL[2:2]P[1]: The normalized direction of the placement X Axis. This is [1.0,0.0] if RefDirection is omitted.
P[2]: The normalized direction of the placement Y Axis. This is a derived attribute and is orthogonal to P[1]. If RefDirection is omitted, it defaults to [0.0,1.0]
X
Inherited definitions from supertypes
Entity inheritance IfcPlacement IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionC
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. X
IfcGeometricRepresentationItem
IfcPlacement
1LocationIfcCartesianPoint[1:1] The geometric position of a reference point, such as the center of a circle, of the item to be located.X
Dim
:=Location.Dim
IfcDimensionCount[1:1]The space dimensionality of this class, derived from the dimensionality of the location. X
IfcAxis2Placement2D
2RefDirectionIfcDirection[0:1] The direction used to determine the direction of the local X axis. If a value is omited that it defaults to [1.0, 0.0.]. X
P
:=IfcBuild2Axes(RefDirection)
IfcDirectionL[2:2]P[1]: The normalized direction of the placement X Axis. This is [1.0,0.0] if RefDirection is omitted.
P[2]: The normalized direction of the placement Y Axis. This is a derived attribute and is orthogonal to P[1]. If RefDirection is omitted, it defaults to [0.0,1.0]
X
Formal representations
XSD Specification
 <xs:element name="IfcAxis2Placement2D" type="ifc:IfcAxis2Placement2D" substitutionGroup="ifc:IfcPlacement" nillable="true"/>
 <xs:complexType name="IfcAxis2Placement2D">
  <xs:complexContent>
   <xs:extension base="ifc:IfcPlacement">
    <xs:sequence>
     <xs:element name="RefDirection" type="ifc:IfcDirection" nillable="true" minOccurs="0"/>
    </xs:sequence>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcAxis2Placement2D
 SUBTYPE OF (IfcPlacement);
  RefDirection : OPTIONAL IfcDirection;
 DERIVE
  P : LIST [2:2] OF IfcDirection := IfcBuild2Axes(RefDirection);
 WHERE
  RefDirIs2D : (NOT (EXISTS (RefDirection))) OR (RefDirection.Dim = 2);
  LocationIs2D : SELF\IfcPlacement.Location.Dim = 2;
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
