IfcPropertySetDefinition

Semantic definitions at the entity

Entity definition

IfcPropertySetDefinition is a generalization of all individual property sets that can be assigned to an object or type object. The property set definition can be either:

Dynamically extendable property sets - IfcPropertySet, a set of properties for which the IFC specification only provides a kind of "meta model", to be further declared by agreement. This means no entity definition of the properties exists within the IFC specification. The declaration is done by assigning a significant string value to the Name attribute of the entity as defined in the entity IfcPropertySet and at each subtype of IfcProperty, referenced by the property set. Dynamically defined property sets may have an underlying template provided by IfcPropertySetTemplate.
Statically defined property sets - IfcPreDefinedPropertySet, a property set entity that exists within the IFC specification. The semantic meaning of each statically defined property set is declared by its entity type and the meaning of the properties is defined by the name and data type of the explicit attribute representing it.

Property set definitions define information that is shared among multiple instances of objects, either object occurrences or object types. IfcPropertySetDefinition's (by their instantiable subtypes) can participate within the following relationships:

Assignment to object types - an DefinesType direct relationship to IfcTypeObject that applies the property set, with all included properties, to the object type. Those properties apply to all object occurrences having the same object type.
Assignment to object occurrences - an DefinesOccurrence relationship to IfcRelDefinesByProperties that applies the property set, with all included properties, to the object occurrence.

NOTE Properties assigned to object occurrences may override properties assigned to the object type. See IfcRelDefinesByType for further information.

HISTORY New entity in IFC2x

IFC4 CHANGE The subtype IfcPreDefinedPropertySet has been added.

Attribute definitions

Attribute	Type	Cardinality	Description	C
DefinesType	IfcTypeObject @HasPropertySets	S[0:?]	The type object to which the property set is assigned. The property set acts as a shared property set to all occurrences of the type object. NOTE The relationship between the IfcPropertySetDefinition and the IfcTypeObject is a direct relationship, not utilizing IfcRelDefinesByProperties, for maintaining compatibility with earlier releases of this standard.	X
IsDefinedBy	IfcRelDefinesByTemplate @RelatedPropertySets	S[0:?]	Relation to the property set template, via the objectified relationship IfcRelDefinesByTemplate, that, if given, provides the definition template for the property set or quantity set and its properties.	X
DefinesOccurrence	IfcRelDefinesByProperties @RelatingPropertyDefinition	S[0:?]	Reference to the relation to one or many object occurrences that are characterized by the property set definition. A single property set can be assigned to multiple object occurrences using the objectified relationship IfcRefDefinesByProperties.	X

Inherited definitions from supertypes

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcPropertyDefinition
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]		X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.	X
IfcPropertySetDefinition
	DefinesType	IfcTypeObject @HasPropertySets	S[0:?]	The type object to which the property set is assigned. The property set acts as a shared property set to all occurrences of the type object. NOTE The relationship between the IfcPropertySetDefinition and the IfcTypeObject is a direct relationship, not utilizing IfcRelDefinesByProperties, for maintaining compatibility with earlier releases of this standard.	X
	IsDefinedBy	IfcRelDefinesByTemplate @RelatedPropertySets	S[0:?]	Relation to the property set template, via the objectified relationship IfcRelDefinesByTemplate, that, if given, provides the definition template for the property set or quantity set and its properties.	X
	DefinesOccurrence	IfcRelDefinesByProperties @RelatingPropertyDefinition	S[0:?]	Reference to the relation to one or many object occurrences that are characterized by the property set definition. A single property set can be assigned to multiple object occurrences using the objectified relationship IfcRefDefinesByProperties.	X

Definitions applying to Common Use Definitions

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions

Formal representations

XSD Specification

 <xs:element name="IfcPropertySetDefinition" type="ifc:IfcPropertySetDefinition" abstract="true" substitutionGroup="ifc:IfcPropertyDefinition" nillable="true"/>

 <xs:complexType name="IfcPropertySetDefinition" abstract="true">

  <xs:complexContent>

   <xs:extension base="ifc:IfcPropertyDefinition"/>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcPropertySetDefinition

 ABSTRACT SUPERTYPE OF(ONEOF(IfcPreDefinedPropertySet, IfcPropertySet, IfcQuantitySet))

 SUBTYPE OF (IfcPropertyDefinition);

 INVERSE

  DefinesType : SET OF IfcTypeObject FOR HasPropertySets;

  IsDefinedBy : SET OF IfcRelDefinesByTemplate FOR RelatedPropertySets;

  DefinesOccurrence : SET [0:?] OF IfcRelDefinesByProperties FOR RelatingPropertyDefinition;

END_ENTITY;

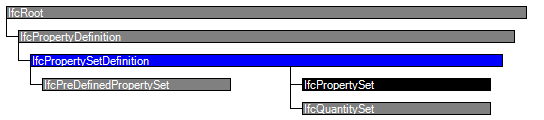

 EXPRESS-G diagram
