IfcSimplePropertyTemplate

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcSimplePropertyTemplate			ADDED

Semantic definitions at the entity

Entity definition

The IfcSimplePropertyTemplate defines the template for all dynamically extensible properties, either the subtypes of IfcSimpleProperty, or the subtypes of IfcPhysicalSimpleQuantity. The individual property templates are interpreted according to their Name attribute and may have a predefined template type, property units, and property measure types. The correct interpretation of the attributes:

PrimaryUnit
SecondaryUnit
PrimaryMeasureType
SecondaryMeasureType

is determined by the TemplateType. The attributes Enumerators and Expression only apply to instances of IfcSimplePropertyTemplate having a particular TemplateType. The TemplateType also controls, which subtype of either IfcSimpleProperty or IfcPhysicalSimpleQuantity shall be used for property occurrences corresponding to this template.

The IfcSimplePropertyTemplate is part of the set of templates included in the IfcPropertySetTemplate. The template can be accessed throught the inverse attribute PartOfPsetTemplate The IfcPropertySetTemplate may define one or several instances of IfcPropertySet (or IfcElementQuantity). The definition assignment is established by the objectified relationship IfcRelDefinesByTemplate as shown in Figure 125. There is no direct link between an IfcSimplePropertyTemplate and a subtype of either IfcSimpleProperty or IfcPhysicalSimpleQuantity. The definition relationship between the template and the individual properties (or quantities) is established by the Name attributes.

NOTE Constraints at IfcPropertySetTemplate and IfcPropertySet (and IfcElementQuantity) guarantee that the Name attributes of included property templates and individual properties are unique.

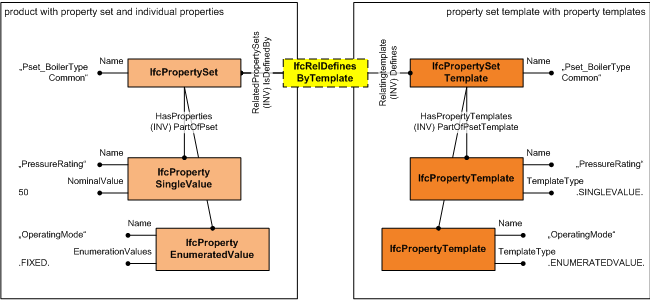

Figure 125 — Property template relationships

HISTORY New entity in IFC4.

Attribute definitions

#	Attribute	Type	Cardinality	Description	C
5	TemplateType	IfcSimplePropertyTemplateTypeEnum	[0:1]	Property type defining whether the property template defines a property with a single value, a bounded value, a list value, a table value, an enumerated value, or a reference value. Or the quantity type defining whether the template defines a quantity with a length, area, volume, weight or time value. NOTE the value of this property determines the correct use of the PrimaryUnit, SecondaryUnit, PrimaryDataType, SecondaryDataType, and Expression attributes.	X
6	PrimaryMeasureType	IfcLabel	[0:1]	Primary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_SINGLEVALUE: determining the measure type of IfcPropertySingleValue.NominalValue P_ENUMERATEDVALUE: determining the measure type of IfcPropertyEnumeratedValue.EnumerationValues P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.LowerBoundValue P_LISTVALUE: determining the measure type of IfcPropertyListValue.ListValues P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefiningValues P_REFERENCEVALUE: determining the measure type of IfcPropertyTableValue.PropertyReference NOTE The value range of the measure type is within the select type IfcValue for all PropertyType's with the exeption of P_REFERENCEVALUE. Here it is within the select type IfcObjectReferenceSelect.	X
7	SecondaryMeasureType	IfcLabel	[0:1]	Secondary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.UpperBoundValue P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefinedValues The value range of the measure type is within the select type IfcValue for all PropertyType's with the exeption of P_ENUMERATEDVALUE. Here it is the comma delimited list of enumerators. NOTE The measure type of IfcPropertyEnumeration.EnumerationValues is provided as PrimaryDataType.	X
8	Enumerators	IfcPropertyEnumeration	[0:1]	Name of the property enumeration, and list of all valid enumerators being selectable values, assigned to the definition of the property. This attribute shall only be provided, if the PropertyType is set to: P_ENUMERATEDVALUE	X
9	PrimaryUnit	IfcUnit	[0:1]	Primary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_SINGLEVALUE: determining the IfcPropertySingleValue.Unit P_ENUMERATEDVALUE: determining the IfcPropertyEnumeration.Unit P_BOUNDEDVALUE: determining the IfcPropertyBoundedValue.Unit P_LISTVALUE: determining the IfcPropertyListValue.Unit P_TABLEVALUE: determining the IfcPropertyTableValue.DefiningUnit	X
10	SecondaryUnit	IfcUnit	[0:1]	Secondary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_TABLEVALUE: determining the IfcPropertyTableValue.DefinedUnit	X
11	Expression	IfcLabel	[0:1]	The expression used to store additional information for the property template depending on the PropertyType. It should the following definitions, if the PropertyType is set to: P_TABLEVALUE: the expression that could be evaluated to define the correlation between the defining values and the defined values. Q_LENGTH, Q_AREA, Q_VOLUME, Q_COUNT, Q_WEIGTH, Q_TIME: the formula to be used to calculate the quantity NOTE No value shall be asserted if the PropertyType is not listed above.	X
12	AccessState	IfcStateEnum	[0:1]	Information about the access state of the property. It determines whether a property be viewed and/or modified by any receiving application without specific knowledge of it. Attribute use definition for IfcStateEnum READWRITE: Properties of this template are readable and writable. They may be viewed and modified by users of any application. These are typical informational properties set by a user. READONLY: Properties of this template are read-only. They may be viewed but not modified by users of any application. (Applications may generate such values). These are typical automatically generated properties that should be displayed only, but not written back. LOCKED: Properties of this template are locked. They may only be accessed by the owning application (the publisher of the property set template). These are typically application depended, internal properties that should not be published. READWRITELOCKED: Properties of this template are locked, readable, and writable. They may only be accessed by the owning application. READONLYLOCKED: Properties of this template are locked and read-only. They may only be accessed by the owning application.	X

Inherited definitions from supertypes

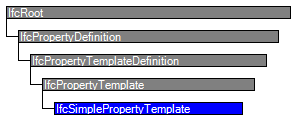

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	C
IfcRoot
1	GlobalId	IfcGloballyUniqueId	[1:1]	Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	[0:1]	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification.	X
3	Name	IfcLabel	[0:1]	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	[0:1]	Optional description, provided for exchanging informative comments.	X
IfcPropertyDefinition
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]		X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.	X
IfcPropertyTemplateDefinition
IfcPropertyTemplate
	PartOfComplexTemplate	IfcComplexPropertyTemplate @HasPropertyTemplates	S[0:?]	Reference to a complex property templates. It should only be provided, if the PropertyType of the referenced complex property template is set to COMPLEX.	X
	PartOfPsetTemplate	IfcPropertySetTemplate @HasPropertyTemplates	S[0:?]	Reference to the IfcPropertySetTemplate that defines the scope for the IfcPropertyTemplate. A single IfcPropertyTemplate can be defined within the scope of zero, one or many IfcPropertySetTemplate'.	X
IfcSimplePropertyTemplate
5	TemplateType	IfcSimplePropertyTemplateTypeEnum	[0:1]	Property type defining whether the property template defines a property with a single value, a bounded value, a list value, a table value, an enumerated value, or a reference value. Or the quantity type defining whether the template defines a quantity with a length, area, volume, weight or time value. NOTE the value of this property determines the correct use of the PrimaryUnit, SecondaryUnit, PrimaryDataType, SecondaryDataType, and Expression attributes.	X
6	PrimaryMeasureType	IfcLabel	[0:1]	Primary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_SINGLEVALUE: determining the measure type of IfcPropertySingleValue.NominalValue P_ENUMERATEDVALUE: determining the measure type of IfcPropertyEnumeratedValue.EnumerationValues P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.LowerBoundValue P_LISTVALUE: determining the measure type of IfcPropertyListValue.ListValues P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefiningValues P_REFERENCEVALUE: determining the measure type of IfcPropertyTableValue.PropertyReference NOTE The value range of the measure type is within the select type IfcValue for all PropertyType's with the exeption of P_REFERENCEVALUE. Here it is within the select type IfcObjectReferenceSelect.	X
7	SecondaryMeasureType	IfcLabel	[0:1]	Secondary measure type assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_BOUNDEDVALUE: determining the measure type of IfcPropertyBoundedValue.UpperBoundValue P_TABLEVALUE: determining the measure type of IfcPropertyTableValue.DefinedValues The value range of the measure type is within the select type IfcValue for all PropertyType's with the exeption of P_ENUMERATEDVALUE. Here it is the comma delimited list of enumerators. NOTE The measure type of IfcPropertyEnumeration.EnumerationValues is provided as PrimaryDataType.	X
8	Enumerators	IfcPropertyEnumeration	[0:1]	Name of the property enumeration, and list of all valid enumerators being selectable values, assigned to the definition of the property. This attribute shall only be provided, if the PropertyType is set to: P_ENUMERATEDVALUE	X
9	PrimaryUnit	IfcUnit	[0:1]	Primary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_SINGLEVALUE: determining the IfcPropertySingleValue.Unit P_ENUMERATEDVALUE: determining the IfcPropertyEnumeration.Unit P_BOUNDEDVALUE: determining the IfcPropertyBoundedValue.Unit P_LISTVALUE: determining the IfcPropertyListValue.Unit P_TABLEVALUE: determining the IfcPropertyTableValue.DefiningUnit	X
10	SecondaryUnit	IfcUnit	[0:1]	Secondary unit assigned to the definition of the property. It should be provided, if the PropertyType is set to: P_TABLEVALUE: determining the IfcPropertyTableValue.DefinedUnit	X
11	Expression	IfcLabel	[0:1]	The expression used to store additional information for the property template depending on the PropertyType. It should the following definitions, if the PropertyType is set to: P_TABLEVALUE: the expression that could be evaluated to define the correlation between the defining values and the defined values. Q_LENGTH, Q_AREA, Q_VOLUME, Q_COUNT, Q_WEIGTH, Q_TIME: the formula to be used to calculate the quantity NOTE No value shall be asserted if the PropertyType is not listed above.	X
12	AccessState	IfcStateEnum	[0:1]	Information about the access state of the property. It determines whether a property be viewed and/or modified by any receiving application without specific knowledge of it. Attribute use definition for IfcStateEnum READWRITE: Properties of this template are readable and writable. They may be viewed and modified by users of any application. These are typical informational properties set by a user. READONLY: Properties of this template are read-only. They may be viewed but not modified by users of any application. (Applications may generate such values). These are typical automatically generated properties that should be displayed only, but not written back. LOCKED: Properties of this template are locked. They may only be accessed by the owning application (the publisher of the property set template). These are typically application depended, internal properties that should not be published. READWRITELOCKED: Properties of this template are locked, readable, and writable. They may only be accessed by the owning application. READONLYLOCKED: Properties of this template are locked and read-only. They may only be accessed by the owning application.	X

Definitions applying to Common Use Definitions

Concept inheritance

#	Concept	Model View
IfcRoot
	Software Identity	Common Use Definitions
	Revision Control	Common Use Definitions

Examples

Air terminal library object

Formal representations

XSD Specification

 <xs:element name="IfcSimplePropertyTemplate" type="ifc:IfcSimplePropertyTemplate" substitutionGroup="ifc:IfcPropertyTemplate" nillable="true"/>

 <xs:complexType name="IfcSimplePropertyTemplate">

  <xs:complexContent>

   <xs:extension base="ifc:IfcPropertyTemplate">

    <xs:sequence>

     <xs:element name="Enumerators" type="ifc:IfcPropertyEnumeration" nillable="true" minOccurs="0"/>

     <xs:element name="PrimaryUnit" nillable="true" minOccurs="0">

      <xs:complexType>

       <xs:group ref="ifc:IfcUnit"/>

      </xs:complexType>

     </xs:element>

     <xs:element name="SecondaryUnit" nillable="true" minOccurs="0">

      <xs:complexType>

       <xs:group ref="ifc:IfcUnit"/>

      </xs:complexType>

     </xs:element>

    </xs:sequence>

    <xs:attribute name="TemplateType" type="ifc:IfcSimplePropertyTemplateTypeEnum" use="optional"/>

    <xs:attribute name="PrimaryMeasureType" type="ifc:IfcLabel" use="optional"/>

    <xs:attribute name="SecondaryMeasureType" type="ifc:IfcLabel" use="optional"/>

    <xs:attribute name="Expression" type="ifc:IfcLabel" use="optional"/>

    <xs:attribute name="AccessState" type="ifc:IfcStateEnum" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcSimplePropertyTemplate

 SUBTYPE OF (IfcPropertyTemplate);

  TemplateType : OPTIONAL IfcSimplePropertyTemplateTypeEnum;

  PrimaryMeasureType : OPTIONAL IfcLabel;

  SecondaryMeasureType : OPTIONAL IfcLabel;

  Enumerators : OPTIONAL IfcPropertyEnumeration;

  PrimaryUnit : OPTIONAL IfcUnit;

  SecondaryUnit : OPTIONAL IfcUnit;

  Expression : OPTIONAL IfcLabel;

  AccessState : OPTIONAL IfcStateEnum;

END_ENTITY;

 EXPRESS-G diagram
