IfcModulusOfSubgradeReactionMeasure

Semantic definitions at the type

Type definition

IfcModulusOfSubgradeReactionMeasure is a geotechnical measure describing interaction between foundation structures and the soil. May also be known as bedding measure.

Usually measured in N/m3.

Type: REAL

HISTORY New type in IFC2x.

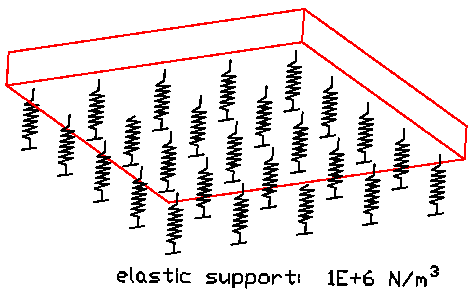

Figure 357 illustrates elastic support of a planar member.

Figure 357 — Modulus of subgrade reaction measure

Formal representations

XSD Specification

 <xs:simpleType name="IfcModulusOfSubgradeReactionMeasure">

  <xs:restriction base="xs:double"/>

 </xs:simpleType>

 <xs:element name="IfcModulusOfSubgradeReactionMeasure-wrapper" nillable="true">

  <xs:complexType>

   <xs:simpleContent>

    <xs:extension base="ifc:IfcModulusOfSubgradeReactionMeasure">

     <xs:attributeGroup ref="ifc:instanceAttributes"/>

    </xs:extension>

   </xs:simpleContent>

  </xs:complexType>

 </xs:element>

EXPRESS Specification


TYPE IfcModulusOfSubgradeReactionMeasure = REAL;
END_TYPE;
