IfcComplexPropertyTemplate

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcComplexPropertyTemplate			ADDED

Semantic definitions at the entity

Entity definition

The IfcComplexPropertyTemplate defines the template for all complex properties, either the IfcComplexProperty's, or the IfcPhysicalComplexQuantity's. The individual complex property templates are interpreted according to their Name attribute and and optional UsageName attribute.

HISTORY New entity in IFC4.

Attribute definitions

#	Attribute	Type	Cardinality	Description	G
5	UsageName	IfcLabel	?		X
6	TemplateType	IfcComplexPropertyTemplateTypeEnum	?		X
7	HasPropertyTemplates	IfcPropertyTemplate	? S[1:?]	Reference to a set of property templates. It should only be provided, if the PropertyType is set to COMPLEX.	X

Formal Propositions

Rule	Description
UniquePropertyNames	Every individual IfcPropertyTemplate within the complex property template shall have a unique Name attribute value.
NoSelfReference

Inherited definitions from supertypes

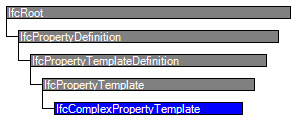

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	G
IfcRoot
1	GlobalId	IfcGloballyUniqueId		Assignment of a globally unique identifier within the entire software world.	X
2	OwnerHistory	IfcOwnerHistory	?	Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object, NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL.	X
3	Name	IfcLabel	?	Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule.	X
4	Description	IfcText	?	Optional description, provided for exchanging informative comments.	X
IfcPropertyDefinition
	HasContext	IfcRelDeclares @RelatedDefinitions	S[0:1]		X
	HasAssociations	IfcRelAssociates @RelatedObjects	S[0:?]	Reference to the relationship IfcRelAssociates and thus to those externally defined concepts, like classifications, documents, or library information, which are associated to the property definition.	X
IfcPropertyTemplateDefinition
IfcPropertyTemplate
	PartOfComplexTemplate	IfcComplexPropertyTemplate @HasPropertyTemplates	S[0:?]	Reference to a complex property templates. It should only be provided, if the PropertyType of the referenced complex property template is set to COMPLEX.	X
	PartOfPsetTemplate	IfcPropertySetTemplate @HasPropertyTemplates	S[0:?]	Reference to the IfcPropertySetTemplate that defines the scope for the IfcPropertyTemplate. A single IfcPropertyTemplate can be defined within the scope of zero, one or many IfcPropertySetTemplate'.	X
IfcComplexPropertyTemplate
5	UsageName	IfcLabel	?		X
6	TemplateType	IfcComplexPropertyTemplateTypeEnum	?		X
7	HasPropertyTemplates	IfcPropertyTemplate	? S[1:?]	Reference to a set of property templates. It should only be provided, if the PropertyType is set to COMPLEX.	X

#	Concept	Template	Model View
IfcRoot
	Identity	Software Identity	General Usage
	Revision Control	Revision Control	General Usage

Formal representations

XML Specification

 <xs:element name="IfcComplexPropertyTemplate" type="ifc:IfcComplexPropertyTemplate" substitutionGroup="ifc:IfcPropertyTemplate" nillable="true"/>

 <xs:complexType name="IfcComplexPropertyTemplate">

  <xs:complexContent>

   <xs:extension base="ifc:IfcPropertyTemplate">

    <xs:sequence>

     <xs:element name="HasPropertyTemplates" nillable="true" minOccurs="0">

      <xs:complexType>

       <xs:sequence>

        <xs:element ref="ifc:IfcPropertyTemplate" maxOccurs="unbounded"/>

       </xs:sequence>

       <xs:attribute ref="ifc:itemType" fixed="ifc:IfcPropertyTemplate"/>

       <xs:attribute ref="ifc:cType" fixed="set"/>

       <xs:attribute ref="ifc:arraySize" use="optional"/>

      </xs:complexType>

     </xs:element>

    </xs:sequence>

    <xs:attribute name="UsageName" type="ifc:IfcLabel" use="optional"/>

    <xs:attribute name="TemplateType" type="ifc:IfcComplexPropertyTemplateTypeEnum" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcComplexPropertyTemplate

 SUBTYPE OF (IfcPropertyTemplate);

  UsageName : OPTIONAL IfcLabel;

  TemplateType : OPTIONAL IfcComplexPropertyTemplateTypeEnum;

  HasPropertyTemplates : OPTIONAL SET [1:?] OF IfcPropertyTemplate;

 WHERE

  UniquePropertyNames : IfcUniquePropertyTemplateNames(HasPropertyTemplates);
  NoSelfReference : SIZEOF(QUERY(temp <* HasPropertyTemplates | SELF :=: temp)) = 0;
END_ENTITY;

 EXPRESS-G diagram
