| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcEventType | ADDED |
An IfcEventType defines a particular type of event that may be specified.
HISTORY New entity in IFC4
An IfcEventType provides for all forms of types of event that may be specified.
Usage of IfcEventType defines the parameters for one or more occurrences of IfcEvent. Parameters may be specified through property sets that may be enumerated in the IfcEventTypeEnum data type or through explicit attributes of IfcEvent. Event occurrences (IfcEvent entities) are linked to the event type through the IfcRelDefinesByType relationship.
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 10 | PredefinedType | IfcEventTypeEnum | Identifies the predefined types of an event from which the type required may be set. | X | |
| 11 | EventTriggerType | IfcEventTriggerTypeEnum | Identifies the predefined types of event trigger from which the type required may be set. | X | |
| 12 | UserDefinedEventTriggerType | IfcLabel | ? | A user defined event trigger type, the value of which is asserted when the value of an event trigger type is declared as USERDEFINED. | X |
| Rule | Description |
|---|---|
| CorrectPredefinedType | The attribute ProcessType must be asserted when the value of PredefinedType is set to USERDEFINED. |
| CorrectEventTriggerType | The attribute UserDefinedEventTriggerType must be asserted when the value of EventTriggerType is set to USERDEFINED. |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcTypeObject | |||||
| 5 | ApplicableOccurrence | IfcIdentifier | ? |
The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used:
EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'. | X |
| 6 | HasPropertySets | IfcPropertySetDefinition | ? S[1:?] |
Set IFC2x3 CHANGE The attribute aggregate type has been changed from LIST to SET. | X |
| Types | IfcRelDefinesByType @RelatingType | S[0:1] | Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type. | X | |
| IfcTypeProcess | |||||
| 7 | Identification | IfcIdentifier | ? | An identifying designation given to a process type. | X |
| 8 | LongDescription | IfcText | ? |
An long description, or text, describing the activity in detail.
NOTE The inherited SELF\IfcRoot.Description attribute is used as the short description. | X |
| 9 | ProcessType | IfcLabel | ? | The type denotes a particular type that indicates the process further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED. | X |
| OperatesOn | IfcRelAssignsToProcess @RelatingProcess | S[0:?] | Set of relationships to other objects, e.g. products, processes, controls, resources or actors that are operated on by the process type.
HISTORY New inverse relationship in IFC4. | X | |
| IfcEventType | |||||
| 10 | PredefinedType | IfcEventTypeEnum | Identifies the predefined types of an event from which the type required may be set. | X | |
| 11 | EventTriggerType | IfcEventTriggerTypeEnum | Identifies the predefined types of event trigger from which the type required may be set. | X | |
| 12 | UserDefinedEventTriggerType | IfcLabel | ? | A user defined event trigger type, the value of which is asserted when the value of an event trigger type is declared as USERDEFINED. | X |
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
<xs:element name="IfcEventType" type="ifc:IfcEventType" substitutionGroup="ifc:IfcTypeProcess" nillable="true"/>
<xs:complexType name="IfcEventType">
<xs:complexContent>
<xs:extension base="ifc:IfcTypeProcess">
<xs:attribute name="PredefinedType" type="ifc:IfcEventTypeEnum" use="optional"/>
<xs:attribute name="EventTriggerType" type="ifc:IfcEventTriggerTypeEnum" use="optional"/>
<xs:attribute name="UserDefinedEventTriggerType" type="ifc:IfcLabel" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcEventType
SUBTYPE OF (IfcTypeProcess);
PredefinedType : IfcEventTypeEnum;
EventTriggerType : IfcEventTriggerTypeEnum;
UserDefinedEventTriggerType : OPTIONAL IfcLabel;
WHERE
CorrectPredefinedType : (PredefinedType <> IfcEventTypeEnum.USERDEFINED) OR ((PredefinedType = IfcEventTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcTypeProcess.ProcessType)) ;
CorrectEventTriggerType : (EventTriggerType <> IfcEventTriggerTypeEnum.USERDEFINED) OR ((EventTriggerType = IfcEventTriggerTypeEnum.USERDEFINED) AND EXISTS(UserDefinedEventTriggerType)) ;
END_ENTITY;

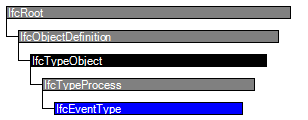

EXPRESS-G diagram
