IfcLaborResourceType

Natural language names
Arbeit - Ressource - Typ
Labor Resource Type
Type de ressource en main d'œuvre
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcLaborResourceTypeADDED
Semantic definitions at the entity
Entity definition

The resource type IfcLaborResourceType defines commonly shared information for occurrences of labour resources. The set of shared information may include:

It is used to define a labour resource specification (the specific resource information that is common to all occurrences of that resource). Resource types may be exchanged without being already assigned to occurrences.

Occurrences of the IfcLaborResourceType are represented by instances of IfcLaborResource.

HISTORY  New entity in IFC4.
Attribute definitions
#AttributeTypeCardinalityDescription G
12PredefinedTypeIfcLaborResourceTypeEnum Defines types of labour resources.

X
Inherited definitions from supertypes

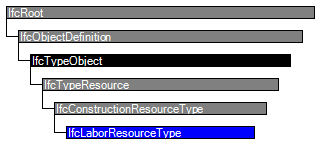

Entity inheritance IfcConstructionResourceType IfcTypeResource IfcTypeObject IfcObjectDefinition IfcRoot
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRoot
1GlobalIdIfcGloballyUniqueId Assignment of a globally unique identifier within the entire software world. X
2OwnerHistoryIfcOwnerHistory? Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE  only the last modification in stored - either as addition, deletion or modification.
IFC4 CHANGE  The attribute has been changed to be OPTIONAL.
X
3NameIfcLabel? Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. X
4DescriptionIfcText? Optional description, provided for exchanging informative comments.X
IfcObjectDefinition
HasAssignmentsIfcRelAssigns
@RelatedObjects		S[0:?]Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups.X
NestsIfcRelNests
@RelatedObjects		S[0:1]References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition.
X
IsNestedByIfcRelNests
@RelatingObject		S[0:?]References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE  The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition.
X
HasContextIfcRelDeclares
@RelatedDefinitions		S[0:1]References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE  The inverse attribute datatype has been added.
X
IsDecomposedByIfcRelAggregates
@RelatingObject		S[0:?]References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
DecomposesIfcRelAggregates
@RelatedObjects		S[0:1]References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE  The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates.
X
HasAssociationsIfcRelAssociates
@RelatedObjects		S[0:?]Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification.X
IfcTypeObject
5ApplicableOccurrenceIfcIdentifier? The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used:
  • The IFC entity name of the applicable occurrence using the IFC naming convention, CamelCase with IFC prefix
  • It can be optionally followed by the predefined type after the separator "/" (forward slash), using uppercase
  • If one type object is applicable to many occurrence objects, then those occurrence object names should be separate by comma "," forming a comma separated string.
EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'.
X
6HasPropertySetsIfcPropertySetDefinition? S[1:?] Set list of unique property sets, that are associated with the object type and are common to all object occurrences referring to this object type.
IFC2x3 CHANGE  The attribute aggregate type has been changed from LIST to SET.
X
TypesIfcRelDefinesByType
@RelatingType		S[0:1]Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type.X
IfcTypeResource
7IdentificationIfcIdentifier? An identifying designation given to a resource type.X
8LongDescriptionIfcText? An long description, or text, describing the resource in detail.
NOTE  The inherited SELF\IfcRoot.Description attribute is used as the short description.
X
9ResourceTypeIfcLabel? The type denotes a particular type that indicates the resource further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED. X
ResourceOfIfcRelAssignsToResource
@RelatingResource		S[0:?]Set of relationships to other objects, e.g. products, processes, controls, resources or actors to which this resource type is a resource.
HISTORY New inverse relationship in IFC4.
X
IfcConstructionResourceType
10BaseCostsIfcAppliedValue? L[1:?] Indicates the unit costs and environmental impacts for which accrued amounts should be calculated. Such unit costs may be split into Name designations (e.g. 'Standard', 'Overtime'), and may contain a hierarchy of cost values that apply at different dates (using IfcCostValue.ApplicableDate and IfcCostValue.FixedUntilDate).

X
11BaseQuantityIfcPhysicalQuantity? Identifies the quantity for which the BaseQuantityProduced applies. The Name of the IfcPhysicalQuantity identifies the quantity definition being measured, e.g. "GrossVolume". For production-based resources (e.g. carpentry labor), this value refers to quantities on IfcProduct(s) to which the assigned IfcTask is assigned. For duration-based resources (e.g. safety inspector, fuel for equipment), this value refers to quantities that may be assigned to occurrences of the assigned IfcTaskType.

X
IfcLaborResourceType
12PredefinedTypeIfcLaborResourceTypeEnum Defines types of labour resources.

X
Definitions applying to General Usage
Concept inheritance

#ConceptTemplateModel View
IfcRoot
IdentitySoftware IdentityGeneral Usage
Revision ControlRevision ControlGeneral Usage
IfcObjectDefinition
Classification AssociationClassification AssociationGeneral Usage
Formal representations
XML Specification
 <xs:element name="IfcLaborResourceType" type="ifc:IfcLaborResourceType" substitutionGroup="ifc:IfcConstructionResourceType" nillable="true"/>
 <xs:complexType name="IfcLaborResourceType">
  <xs:complexContent>
   <xs:extension base="ifc:IfcConstructionResourceType">
    <xs:attribute name="PredefinedType" type="ifc:IfcLaborResourceTypeEnum" use="optional"/>
   </xs:extension>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcLaborResourceType
 SUBTYPE OF (IfcConstructionResourceType);
  PredefinedType : IfcLaborResourceTypeEnum;
 WHERE
  CorrectPredefinedType : (PredefinedType <> IfcLaborResourceTypeEnum.USERDEFINED) OR
((PredefinedType = IfcLaborResourceTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcTypeResource.ResourceType));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
