IfcLineSegment2D

Natural language names
Line Segment 2D
Change log
ItemSPFXMLChangeDescription
IFC4x1 Release Candidate 1
    IfcLineSegment2DADDED
Semantic definitions at the entity
Entity definition

The line segment is defined using the inherited start point, start distance and segment length parameter.

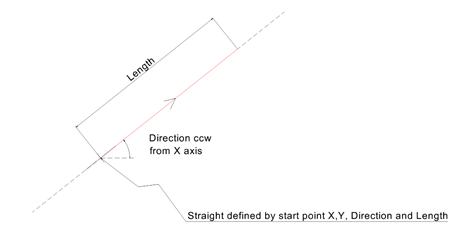

Figure 373 — Line segment 2D

Inherited definitions from supertypes

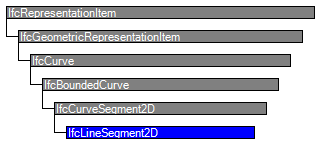

Entity inheritance IfcCurveSegment2D IfcBoundedCurve IfcCurve IfcGeometricRepresentationItem IfcRepresentationItem
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcRepresentationItem
LayerAssignmentIfcPresentationLayerAssignment
@AssignedItems
S[0:1]Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items.
IFC2x3 CHANGE  The inverse attribute LayerAssignments has been added.
IFC4 CHANGE  The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.
X
StyledByItemIfcStyledItem
@Item
S[0:1]Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve.
IFC2x3 CHANGE  The inverse attribute StyledByItem has been added.
X
IfcGeometricRepresentationItem
IfcCurve
Dim
:=IfcCurveDim(SELF)
IfcDimensionCountThe space dimensionality of this abstract class, defined differently for all subtypes, i.e. for IfcLine, IfcConic and IfcBoundedCurve. X
IfcBoundedCurve
IfcCurveSegment2D
1StartPointIfcCartesianPoint The start point of the 2D curve as x/y coordinates defined by a 2D Cartesian point.X
2StartDirectionIfcPlaneAngleMeasure The direction of the tangent at the start point. Direction value 0. indicates a curve with a start tangent along the positive x-axis. Values increases counter-clockwise, and decreases clockwise. Depending on the plane angle unit, either degree or radians, the sensible range is -360° ≤ n ≤ 360° (or -2π ≤ n ≤ 2π). Values larger then a full circle (>|360°| or >|2 π| shall not be used.X
3SegmentLengthIfcPositiveLengthMeasure The length along the curveX
IfcLineSegment2D
Formal representations
XML Specification
 <xs:element name="IfcLineSegment2D" type="ifc:IfcLineSegment2D" substitutionGroup="ifc:IfcCurveSegment2D" nillable="true"/>
 <xs:complexType name="IfcLineSegment2D">
  <xs:complexContent>
   <xs:extension base="ifc:IfcCurveSegment2D"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcLineSegment2D
 SUBTYPE OF (IfcCurveSegment2D);
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
