 | Stab / Stabträger - Typ |
 | Member Type |
 | Type de membre |
| Item | SPF | XML | Change | Description | IFC2x3 to IFC4 |
|---|---|---|---|---|
| IfcMemberType | ||||
| OwnerHistory | MODIFIED | Instantiation changed to OPTIONAL. | ||
| ApplicableOccurrence | MODIFIED | Type changed from IfcLabel to IfcIdentifier. |
The element type IfcMemberType defines commonly shared information for occurrences of members. Members are predominately linear building elements, often forming part of a structural system. The orientation of the member (being horizontal, vertical or sloped) is not relevant to its definition (in contrary to beam and column). The set of shared information may include:
It is used to define a member specification, or member style (the specific product information that is common to all occurrences of that member type). Member types may be exchanged without being already assigned to occurrences.
Occurrences of the IfcMemberType within building models are represented by instances of IfcMemberStandardCase if the IfcMemberType has a single associated IfcMaterialProfileSet; otherwise they are represented by instances of IfcMember. Occurrences of the IfcMemberType within structural analysis models are represented by instances of IfcStructuralCurveMember, or its applicable subtypes.
HISTORY New entity in IFC2x2 Addendum 1.

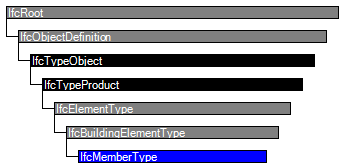

| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| 10 | PredefinedType | IfcMemberTypeEnum | Identifies the predefined types of a linear structural member element from which the type required may be set. | X |
| Rule | Description |
|---|---|
| CorrectPredefinedType | The inherited attribute ElementType shall be provided, if the PredefinedType is set to USERDEFINED. |
| # | Attribute | Type | Cardinality | Description | G |
|---|---|---|---|---|---|
| IfcRoot | |||||
| 1 | GlobalId | IfcGloballyUniqueId | Assignment of a globally unique identifier within the entire software world. | X | |
| 2 | OwnerHistory | IfcOwnerHistory | ? |
Assignment of the information about the current ownership of that object, including owning actor, application, local identification and information captured about the recent changes of the object,
NOTE only the last modification in stored - either as addition, deletion or modification. IFC4 CHANGE The attribute has been changed to be OPTIONAL. | X |
| 3 | Name | IfcLabel | ? | Optional name for use by the participating software systems or users. For some subtypes of IfcRoot the insertion of the Name attribute may be required. This would be enforced by a where rule. | X |
| 4 | Description | IfcText | ? | Optional description, provided for exchanging informative comments. | X |
| IfcObjectDefinition | |||||
| HasAssignments | IfcRelAssigns @RelatedObjects | S[0:?] | Reference to the relationship objects, that assign (by an association relationship) other subtypes of IfcObject to this object instance. Examples are the association to products, processes, controls, resources or groups. | X | |
| Nests | IfcRelNests @RelatedObjects | S[0:1] | References to the decomposition relationship being a nesting. It determines that this object definition is a part within an ordered whole/part decomposition relationship. An object occurrence or type can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been added and separated from Decomposes defined at IfcObjectDefinition. | X | |
| IsNestedBy | IfcRelNests @RelatingObject | S[0:?] | References to the decomposition relationship being a nesting. It determines that this object definition is the whole within an ordered whole/part decomposition relationship. An object or object type can be nested by several other objects (occurrences or types).
IFC4 CHANGE The inverse attribute datatype has been added and separated from IsDecomposedBy defined at IfcObjectDefinition. | X | |
| HasContext | IfcRelDeclares @RelatedDefinitions | S[0:1] | References to the context providing context information such as project unit or representation context. It should only be asserted for the uppermost non-spatial object.
IFC4 CHANGE The inverse attribute datatype has been added. | X | |
| IsDecomposedBy | IfcRelAggregates @RelatingObject | S[0:?] | References to the decomposition relationship being an aggregation. It determines that this object definition is whole within an unordered whole/part decomposition relationship. An object definitions can be aggregated by several other objects (occurrences or parts).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| Decomposes | IfcRelAggregates @RelatedObjects | S[0:1] | References to the decomposition relationship being an aggregation. It determines that this object definition is a part within an unordered whole/part decomposition relationship. An object definitions can only be part of a single decomposition (to allow hierarchical strutures only).
IFC4 CHANGE The inverse attribute datatype has been changed from the supertype IfcRelDecomposes to subtype IfcRelAggregates. | X | |
| HasAssociations | IfcRelAssociates @RelatedObjects | S[0:?] | Reference to the relationship objects, that associates external references or other resource definitions to the object.. Examples are the association to library, documentation or classification. | X | |
| IfcTypeObject | |||||
| 5 | ApplicableOccurrence | IfcIdentifier | ? |
The attribute optionally defines the data type of the occurrence object, to which the assigned type object can relate. If not present, no instruction is given to which occurrence object the type object is applicable. The following conventions are used:
EXAMPLE Refering to a furniture as applicable occurrence entity would be expressed as 'IfcFurnishingElement', refering to a brace as applicable entity would be expressed as 'IfcMember/BRACE', refering to a wall and wall standard case would be expressed as 'IfcWall, IfcWallStandardCase'. | X |
| 6 | HasPropertySets | IfcPropertySetDefinition | ? S[1:?] |
Set IFC2x3 CHANGE The attribute aggregate type has been changed from LIST to SET. | X |
| Types | IfcRelDefinesByType @RelatingType | S[0:1] | Reference to the relationship IfcRelDefinedByType and thus to those occurrence objects, which are defined by this type. | X | |
| IfcTypeProduct | |||||
| 7 | RepresentationMaps | IfcRepresentationMap | ? L[1:?] | List of unique representation maps. Each representation map describes a block definition of the shape of the product style. By providing more than one representation map, a multi-view block definition can be given. | X |
| 8 | Tag | IfcLabel | ? | The tag (or label) identifier at the particular type of a product, e.g. the article number (like the EAN). It is the identifier at the specific level. | X |
| ReferencedBy | IfcRelAssignsToProduct @RelatingProduct | S[0:?] | Reference to the IfcRelAssignsToProduct relationship, by which other products, processes, controls, resources or actors (as subtypes of IfcObjectDefinition) can be related to this product type.
IFC4 CHANGE New inverse relationship. | X | |
| IfcElementType | |||||
| 9 | ElementType | IfcLabel | ? | The type denotes a particular type that indicates the object further. The use has to be established at the level of instantiable subtypes. In particular it holds the user defined type, if the enumeration of the attribute 'PredefinedType' is set to USERDEFINED. | X |
| IfcBuildingElementType | |||||
| IfcMemberType | |||||
| 10 | PredefinedType | IfcMemberTypeEnum | Identifies the predefined types of a linear structural member element from which the type required may be set. | X | |
Material Profile Set
The Material Profile Set concept applies to this entity.
The material of the IfcMemberType is defined by the IfcMaterialProfileSet or as fall back by IfcMaterial and attached by the IfcRelAssociatesMaterial.RelatingMaterial. It is accessible by the inverse HasAssociations relationship.
NOTE It is illegal to assign an IfcMaterial to an IfcMemberType, if there is at least one occurrences of IfcMemberStandardCase for this type.
The shared profile definition is defined by assigning an IfcMaterialProfileSet (see material use definition above). The IfcMaterialProfile refers to the subtype of IfcProfileDef that is the common profile for all member occurrence, if used. It is only applicable if the IfcMemberType has only occurrences of type IfcMemberStandardCase (see definition of IfcMemberStandardCase for further information).
NOTE The attribute ProfileName of the IfcProfileDef subtype, referenced in IfcMaterialProfile should contain a standardized profile name according to local standards. However, an additional geometric representation of the profile is necessary (e.g. as IfcExtrudedAreaSolid). An importing application is allowed to check for the existence of the profile name: in case of identifying it as a standardized name, the corresponding profile geometry and possibly other cross sectional properties can be read from a library. Otherwise the geometric representation and possible non geometric IfcProfileProperties have to be used.
Body Geometry
The Type Body Geometry concept applies to this entity.
The IfcMemberType may define the shared geometric representation for all member occurrences. The RepresentationMaps attribute refers to a list of IfcRepresentationMap's, that allow for multiple geometric representations (e.g. with IfcShaperepresentation's having an RepresentationIdentifier 'Box', 'Axis', or 'Body'). It is only applicable if the IfcMemberType has only occurrences of type IfcMember (See geometric use definition of IfcMember for further information).
NOTE If the IfcMemberType has an associated IfcMaterialProfileSet, then no shared geometric representation shall be provided.
NOTE The product shape representations are defined as RepresentationMaps (attribute of the supertype IfcTypeProduct), which get assigned by an element occurrence instance through the IfcShapeRepresentation.Item[n] being an IfcMappedItem. See IfcTypeProduct for further information.
NOTE The values of attributes RepresentationIdentifier and RepresentationType of IfcShapeRepresentation are restricted in the same way as those for IfcMember and IfcMemberStandardCase
Instance diagram
<?xml version="1.0"?>
<ConceptRoot xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" uuid="dc64153d-d723-4633-9d60-b8e66f619280" name="IfcMemberType" status="sample" applicableRootEntity="IfcMemberType">
<Applicability uuid="00000000-0000-0000-0000-000000000000" status="sample">
<Template ref="18dfdc3c-5ed2-4ddb-92e4-167764c527a8" />
<TemplateRules operator="and" />
</Applicability>
<Concepts>
<Concept uuid="f3c35448-f292-4f90-8077-0cb228eab14a" name="Material Profile Set" status="sample" override="false">
<Template ref="427ac055-2a71-42c2-a423-71689fa75c59" />
</Concept>
<Concept uuid="eaa64ba3-1bf3-4102-848d-cda05f98d479" name="Body Geometry" status="sample" override="false">
<Template ref="3aec2d00-b4bb-476a-a821-fc22b895b531" />
</Concept>
</Concepts>
</ConceptRoot>
| # | Concept | Template | Model View |
|---|---|---|---|
| IfcRoot | |||
| Identity | Software Identity | General Usage | |
| Revision Control | Revision Control | General Usage | |
| IfcObjectDefinition | |||
| Classification Association | Classification Association | General Usage | |
| IfcTypeProduct | |||
| Product Type Shape | Product Type Shape | General Usage | |
| IfcMemberType | |||
| Material Profile Set | Material Profile Set | General Usage | |
| Body Geometry | Type Body Geometry | General Usage | |
<xs:element name="IfcMemberType" type="ifc:IfcMemberType" substitutionGroup="ifc:IfcBuildingElementType" nillable="true"/>
<xs:complexType name="IfcMemberType">
<xs:complexContent>
<xs:extension base="ifc:IfcBuildingElementType">
<xs:attribute name="PredefinedType" type="ifc:IfcMemberTypeEnum" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
ENTITY IfcMemberType
SUBTYPE OF (IfcBuildingElementType);
PredefinedType : IfcMemberTypeEnum;
WHERE
CorrectPredefinedType : (PredefinedType <> IfcMemberTypeEnum.USERDEFINED) OR
((PredefinedType = IfcMemberTypeEnum.USERDEFINED) AND EXISTS(SELF\IfcElementType.ElementType));
END_ENTITY;
