IfcPresentationItem

Natural language names
Präsentationselement
Presentation Item
Item de présentation
Change log
ItemSPFXMLChangeDescription
IFC2x3 to IFC4
    IfcPresentationItemADDED
Semantic definitions at the entity
Entity definition

The IfcPresentationItem is the abstract supertype of all entities used for presentation appearance definitions.

HISTORY  New entity in IFC4.
Inherited definitions from supertypes

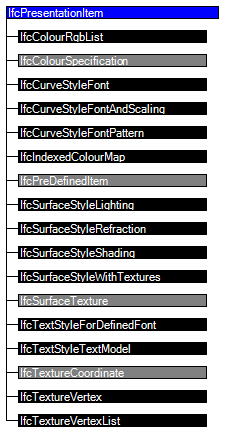

Entity inheritance IfcColourRgbList IfcColourSpecification IfcCurveStyleFont IfcCurveStyleFontAndScaling IfcCurveStyleFontPattern IfcIndexedColourMap IfcPreDefinedItem IfcSurfaceStyleLighting IfcSurfaceStyleRefraction IfcSurfaceStyleShading IfcSurfaceStyleWithTextures IfcSurfaceTexture IfcTextStyleForDefinedFont IfcTextStyleTextModel IfcTextureCoordinate IfcTextureVertex IfcTextureVertexList
Attribute inheritance
#AttributeTypeCardinalityDescriptionG
IfcPresentationItem
Formal representations
XML Specification
 <xs:element name="IfcPresentationItem" type="ifc:IfcPresentationItem" abstract="true" substitutionGroup="ifc:Entity" nillable="true"/>
 <xs:complexType name="IfcPresentationItem" abstract="true">
  <xs:complexContent>
   <xs:extension base="ifc:Entity"/>
  </xs:complexContent>
 </xs:complexType>
EXPRESS Specification
ENTITY IfcPresentationItem
 ABSTRACT SUPERTYPE OF(ONEOF(IfcColourRgbList, IfcColourSpecification, IfcCurveStyleFont, IfcCurveStyleFontAndScaling, IfcCurveStyleFontPattern, IfcIndexedColourMap, IfcPreDefinedItem, IfcSurfaceStyleLighting, IfcSurfaceStyleRefraction, IfcSurfaceStyleShading, IfcSurfaceStyleWithTextures, IfcSurfaceTexture, IfcTextStyleForDefinedFont, IfcTextStyleTextModel, IfcTextureCoordinate, IfcTextureVertex, IfcTextureVertexList));
END_ENTITY;

Link to EXPRESS-G diagram EXPRESS-G diagram
