IfcRightCircularCone

Semantic definitions at the entity

Entity definition

The IfcRightCircularCone is a Construction Solid Geometry (CSG) 3D primitive. It is a solid with a circular base and a point called apex as the top. The tapers from the base to the top. The axis from the center of the circular base to the apex is perpendicular to the base. The inherited Position attribute defines the IfcAxisPlacement3D and provides the location and orientation of the cone:

SELF\IfcCsgPrimitive3D.Position: The location and orientation of the axis system for the primitive.
SELF\IfcCsgPrimitive3D.Position.Location: The center of the circular area being the bottom face of the cone.
SELF\IfcCsgPrimitive3D.Position.Position[3]: The z-axis of the inherited placement coordinate system provides the center axis of the IfcRightCircularCone, and the apex is at the Height value applied to the positive direction of the z-axis. The BottomRadius defines the circular base at the xy-plane of the placement coordinate system.

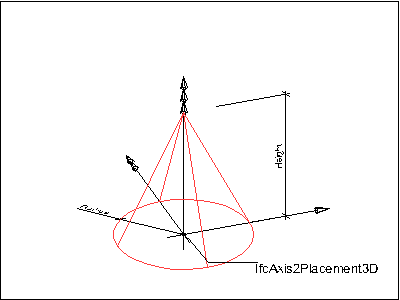

Figure 345 illustrates geometric parameters of the cone. The cone is positioned within its own placement coordinate system. The origin is the center of the bottom circular disk, that lies in the XY plane. The apex lies on the positive z axis at [0, 0, Height].

Figure 345 — Right circular cone geometry

NOTE Entity adapted from right_circular_cone defined in ISO 10303-42.

HISTORY New entity in IFC2x3

Texture use definition

On the circular side, textures are aligned facing upright with origin at the back (+Y direction) revolving counter-clockwise. Textures are stretched or repeated to the extent of the base circumference according to RepeatS. Textures are compressed linearly going upwards towards the top point according to RepeatT.

On the bottom face, textures are aligned facing front-to-back, with the center of the circle aligned to the center of the texture.

Figure 346 illustrates default texture mapping with a clamped texture (RepeatS=False and RepeatT=False). The image on the left shows the texture where the S axis points to the right and the T axis points up. The image on the right shows the texture applied to the geometry where the X axis points back to the right, the Y axis points back to the left, and the Z axis points up.

Side	Normal	Origin X	Origin Y	Origin Z	S Axis	T Axis
Side	+Y	0	+Radius	0	-X	(towards top point)
Bottom	-Z	-Radius	+Radius	0	+X	-Y

Figure 346 — Right circular cone textures

Attribute definitions

#	Attribute	Type	Cardinality	Description	G
2	Height	IfcPositiveLengthMeasure		The distance between the base of the cone and the apex.	X
3	BottomRadius	IfcPositiveLengthMeasure		The radius of the cone at the base.	X

Inherited definitions from supertypes

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	G
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. IFC2x3 CHANGE The inverse attribute LayerAssignments has been added. IFC4 CHANGE The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. IFC2x3 CHANGE The inverse attribute StyledByItem has been added.	X
IfcGeometricRepresentationItem
IfcCsgPrimitive3D
1	Position	IfcAxis2Placement3D		The placement coordinate system to which the parameters of each individual CSG primitive apply.	X
	Dim :=3	IfcDimensionCount		The space dimensionality of this geometric representation item, it is always 3.	X
IfcRightCircularCone
2	Height	IfcPositiveLengthMeasure		The distance between the base of the cone and the apex.	X
3	BottomRadius	IfcPositiveLengthMeasure		The radius of the cone at the base.	X

Formal representations

XML Specification

 <xs:element name="IfcRightCircularCone" type="ifc:IfcRightCircularCone" substitutionGroup="ifc:IfcCsgPrimitive3D" nillable="true"/>

 <xs:complexType name="IfcRightCircularCone">

  <xs:complexContent>

   <xs:extension base="ifc:IfcCsgPrimitive3D">

    <xs:attribute name="Height" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

    <xs:attribute name="BottomRadius" type="ifc:IfcPositiveLengthMeasure" use="optional"/>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcRightCircularCone

 SUBTYPE OF (IfcCsgPrimitive3D);

  Height : IfcPositiveLengthMeasure;

  BottomRadius : IfcPositiveLengthMeasure;

END_ENTITY;

 EXPRESS-G diagram

	Gerader Kreiskegel
	Right Circular Cone
	Cône de révolution
