IfcTriangulatedFaceSet

Item	XML	Change	Description
IFC2x3 to IFC4
IfcTriangulatedFaceSet		ADDED
IFC4 Addendum 1
IfcTriangulatedFaceSet
Closed		MODIFIED	Type changed from BOOLEAN to IfcBoolean.
CoordIndex		MODIFIED	Type changed from INTEGER to IfcPositiveInteger.
NormalIndex		MODIFIED	Type changed from INTEGER to IfcPositiveInteger.
IFC4 Addendum 2
IfcTriangulatedFaceSet
Normals	X	MODIFIED	Xsdformat changed from Content to Default. Xsdtagless changed from True to False.
PnIndex	X	MODIFIED	Name changed from NormalIndex to PnIndex.

Semantic definitions at the entity

Entity definition

The IfcTriangulatedFaceSet is a tessellated face set with all faces being bound by triangles. The faces are constructed by implicit polylines defined by three Cartesian points. Depending on the value of the attribute Closed the instance of IfcTriangulatedFaceSet represents:

if TRUE, a boundary represention (or B-rep);
if FALSE, a face based surface representation.

The coordinates of each point are provided by a one-based index into an ordered list of Cartesian points provided by the two-dimensional list CoordIndex, where

the first dimension of the two-dimensional list addresses the list of triangular faces;
the second dimension of the two-dimensional list provides exactly three indices. Each index points to a Cartesian point being a vertex of the triangle.

Depending on the provision of PnIndex the indices point either directly into the IfcCartesianPointList3D referenced by Coordinates defined at the supertype IfcTessellatedFaceSet, or they point into the PnIndex where the integer values at that position provides the location of the coordinate values within the IfcCartesianPointList3D. See Figure 359 for the handling of point index.

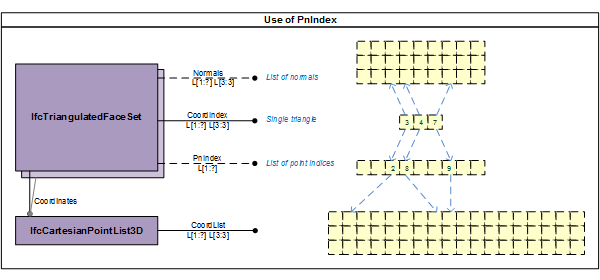

Figure 359 — Use of PnIndex

See Figure 360 for using the IfcTriangulatedFaceSet without (as default) and with using the PnIndex.

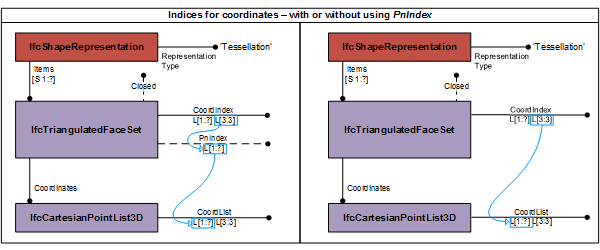

Figure 360 — Triangulated face set

Optionally normals can be provided. Only normals per vector are supported allowing for visually curved triangles when the three normals of the corresponding three vertices of a triangle are not co-linear to the normal of the triangular face. If they are identical, normals shall be omited.

NOTE In case of a body representation having triangular faces with curvature, different normals for all three vertices in context of this triangles are exported, describing the curvature for smooth visualisation. In case of triangular faces with no curvature, the three vertex-based normals are identical and could always be computed from the face. Therefore vertices should only be exported to support smooth visualisation by curvature of triangles. In case of faceted representation no vertices should be exported.

Normals are provided by the two-dimensional list Normals, where

the first dimension of the two-dimensional list addresses the corresponding list of vertex indices of the triangular faces;
the second dimension of the two-dimensional list provides exactly three real values to determine the direction of the normal at this vertex of the triangle.

The indices in the CoordIndex point into the list of Normals. The indices of CoordIndex are applied to both points, either directly directly, or via the PnIndex and normals. See Figure 361 for handling of normals.

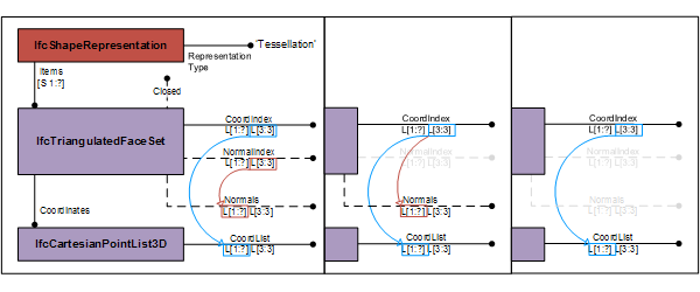

Figure 361 — Triangulated face set with normals

NOTE Using corresponding lists of points and normals allows to use only a single list of indices into both at the expense of having non-unique collections of vertices.

Figure 362 shows the use of IfcTriangulatedFaceSet without annotation. The diagram of the IfcTriangulatedFaceSet represents the indices and the ordered list into which the indices point. The index starts with 1 (indexed as 1 to N), if the greatest index in CoordIndex in N, then the IfcCartesianPointList shall have N lists of 3:3 coordinates.

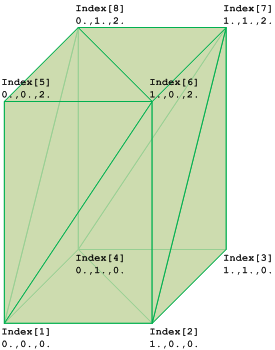

	Figure 168 shows an IfcTriangulatedFaceSet represented by `CoordIndex: ((1,6,5), (1,2,6), (6,2,7), (7,2,3), (7,8,6), (6,8,5), (5,8,1), (1,8,4), (4,2,1), (2,4,3), (4,8,7), (7,3,4)) IfcCartesianPointList3D: ((0.,0.,0.), (1.,0.,0.), (1.,1.,0.), (0.,1.,0.), (0.,0.,2.), (1.,0.,2.), (1.,1.,2.), (0.,1.,2.))`
Figure 362 — Triangulated face set geometry

NOTE The definition of IfcTriangulatedFaceSet is based on the indexedFaceSet and indexedTriangleSet defined in ISO/IEC 19775-1. The use of PnIndex has been adopted from triangulated_surface_set defined in ISO-10303-42.

HISTORY New entity in IFC4.

Informal Propositions:

If Closed = TRUE, the same topological constraints as imposed by an faceted boundary representation shall be safisfied. In particular:
- each face shall be unique;
- each edge shall be used by exactly two boundaries of faces;
- the topological normal at each point on the boundary of the triangulated face set shall point away from the mater ial of the solid.

Attribute definitions

#	Attribute	Type	Cardinality	Description	G
2	Normals	IfcParameterValue	? L[1:?] L[3:3]	An ordered list of three directions for normals. It is a two-dimensional list of directions provided by three parameter values. The first dimension corresponds to the vertex indices of the Coordindex The second dimension has exactly three values, [1] the x-direction, [2] the y-direction and [3] the z-directions	X
3	Closed	IfcBoolean	?	Indication whether the IfcTriangulatedFaceSet is a closed shell or not. If omited no such information can be provided.	X
4	CoordIndex	IfcPositiveInteger	L[1:?] L[3:3]	Two-dimensional list for the indexed-based triangles, where The first dimension represents the triangles (from 1 to N) The second dimension has exactly three values representing the indices to three vertex points (from 1 to 3). NOTE The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList.	X
5	PnIndex	IfcPositiveInteger	? L[1:?]	The list of integers defining the locations in the IfcCartesianPointList3D to obtain the point coordinates for the indices withint the CoordIndex. If the PnIndex is not provided the indices point directly into the IfcCartesianPointList3D.	X
	NumberOfTriangles :=SIZEOF(CoordIndex)	IfcInteger		Derived number of triangles used for this triangulation.	X

Inherited definitions from supertypes

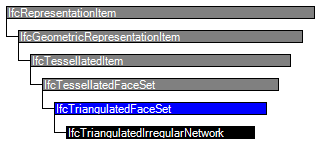

Entity inheritance

Attribute inheritance

#	Attribute	Type	Cardinality	Description	G
IfcRepresentationItem
	LayerAssignment	IfcPresentationLayerAssignment @AssignedItems	S[0:1]	Assignment of the representation item to a single or multiple layer(s). The LayerAssignments can override a LayerAssignments of the IfcRepresentation it is used within the list of Items. IFC2x3 CHANGE The inverse attribute LayerAssignments has been added. IFC4 CHANGE The inverse attribute LayerAssignment has been restricted to max 1. Upward compatibility for file based exchange is guaranteed.	X
	StyledByItem	IfcStyledItem @Item	S[0:1]	Reference to the IfcStyledItem that provides presentation information to the representation, e.g. a curve style, including colour and thickness to a geometric curve. IFC2x3 CHANGE The inverse attribute StyledByItem has been added.	X
IfcGeometricRepresentationItem
IfcTessellatedItem
IfcTessellatedFaceSet
1	Coordinates	IfcCartesianPointList3D		An ordered list of Cartesian points used by the coordinate index defined at the subtypes of IfcTessellatedFaceSet.	X
	HasColours	IfcIndexedColourMap @MappedTo	S[0:1]	Reference to the indexed colour map providing the corresponding colour RGB values to the faces of the subtypes of IfcTessellatedFaceSet.	X
	HasTextures	IfcIndexedTextureMap @MappedTo	S[0:?]	Reference to the indexed texture map providing the corresponding texture coordinates to the vertices bounding the faces of the subtypes of IfcTessellatedFaceSet.	X
	Dim :=3	IfcDimensionCount		The space dimensionality of this geometric representation item, it is always 3.	X
IfcTriangulatedFaceSet
2	Normals	IfcParameterValue	? L[1:?] L[3:3]	An ordered list of three directions for normals. It is a two-dimensional list of directions provided by three parameter values. The first dimension corresponds to the vertex indices of the Coordindex The second dimension has exactly three values, [1] the x-direction, [2] the y-direction and [3] the z-directions	X
3	Closed	IfcBoolean	?	Indication whether the IfcTriangulatedFaceSet is a closed shell or not. If omited no such information can be provided.	X
4	CoordIndex	IfcPositiveInteger	L[1:?] L[3:3]	Two-dimensional list for the indexed-based triangles, where The first dimension represents the triangles (from 1 to N) The second dimension has exactly three values representing the indices to three vertex points (from 1 to 3). NOTE The coordinates of the vertices are provided by the indexed list of SELF\IfcTessellatedFaceSet.Coordinates.CoordList.	X
5	PnIndex	IfcPositiveInteger	? L[1:?]	The list of integers defining the locations in the IfcCartesianPointList3D to obtain the point coordinates for the indices withint the CoordIndex. If the PnIndex is not provided the indices point directly into the IfcCartesianPointList3D.	X
	NumberOfTriangles :=SIZEOF(CoordIndex)	IfcInteger		Derived number of triangles used for this triangulation.	X

Formal representations

XML Specification

 <xs:element name="IfcTriangulatedFaceSet" type="ifc:IfcTriangulatedFaceSet" substitutionGroup="ifc:IfcTessellatedFaceSet" nillable="true"/>

 <xs:complexType name="IfcTriangulatedFaceSet">

  <xs:complexContent>

   <xs:extension base="ifc:IfcTessellatedFaceSet">

    <xs:attribute name="Normals" use="optional">

     <xs:simpleType>

      <xs:restriction>

       <xs:simpleType>

        <xs:list itemType="ifc:IfcParameterValue"/>

       </xs:simpleType>

       <xs:minLength value="3"/>

      </xs:restriction>

     </xs:simpleType>

    </xs:attribute>

    <xs:attribute name="Closed" type="ifc:IfcBoolean" use="optional"/>

    <xs:attribute name="CoordIndex" use="optional">

     <xs:simpleType>

      <xs:restriction>

       <xs:simpleType>

        <xs:list itemType="ifc:IfcPositiveInteger"/>

       </xs:simpleType>

       <xs:minLength value="3"/>

      </xs:restriction>

     </xs:simpleType>

    </xs:attribute>

    <xs:attribute name="PnIndex" use="optional">

     <xs:simpleType>

      <xs:restriction>

       <xs:simpleType>

        <xs:list itemType="ifc:IfcPositiveInteger"/>

       </xs:simpleType>

      </xs:restriction>

     </xs:simpleType>

    </xs:attribute>

   </xs:extension>

  </xs:complexContent>

 </xs:complexType>

EXPRESS Specification


ENTITY IfcTriangulatedFaceSet

 SUPERTYPE OF(IfcTriangulatedIrregularNetwork)

 SUBTYPE OF (IfcTessellatedFaceSet);

  Normals : OPTIONAL LIST [1:?] OF LIST [3:3] OF IfcParameterValue;

  Closed : OPTIONAL IfcBoolean;

  CoordIndex : LIST [1:?] OF LIST [3:3] OF IfcPositiveInteger;

  PnIndex : OPTIONAL LIST [1:?] OF IfcPositiveInteger;

 DERIVE

  NumberOfTriangles : IfcInteger := SIZEOF(CoordIndex);

END_ENTITY;

 EXPRESS-G diagram

	tesselliertes Element aus Dreiecksfl盲chen
	Triangulated Face Set
	Ensemble de faces triangul茅es

IfcTriangulatedFaceSet
