IfcWindowPanelOperationEnum

Item	SPF	XML	Change	Description
IFC2x3 to IFC4
IfcWindowPanelOperationEnum			MOVED	Schema changed from IFCSHAREDBLDGELEMENTS to IFCARCHITECTUREDOMAIN.

Semantic definitions at the type

Type definition

This enumeration defines the basic ways to describe how window panels operate, as shown in Figure 291.

Enumerator	Description	Figure
SideHungRightHand	panel that opens to the right when viewed from the outside
SideHungLeftHand	panel that opens to the left when viewed from the outside
TiltAndTurnRightHand	panel that opens to the right and is bottom hung
TiltAndTurnLeftHand	panel that opens to the left and is bottom hung
TopHung	panel is top hung
BottomHung	panel is bottom hung
PivotHorizontal	panel is swinging horizontally (hinges are in the middle)
PivotVertical	panel is swinging vertically (hinges are in the middle)
SlidingHorizontal	panel is sliding horizontally
SlidingVertical	panel is sliding vertically
RemovableCasement	panel is removable
FixedCasement	panel is fixed
OtherOperation	user defined operation type
NotDefined

Figure 290 — Window panel operations

The opening direction of the window panels is given by the local placement of the IfcWindow. The positive y-axis determines the direction as shown in Figure 291.

NOTE

Figures are shown as viewed from the outside (in direction of the positive y-axis).
Figures (symbolic representation) depend on the national building code
These figures are only shown as illustrations

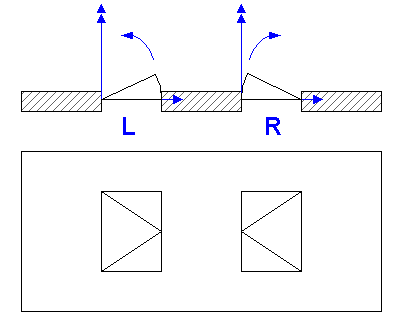

Figure 291 — Window panel directions

HISTORY New enumeration in IFC2.0.

Enumeration definition

Constant	Description
SIDEHUNGRIGHTHAND
SIDEHUNGLEFTHAND
TILTANDTURNRIGHTHAND
TILTANDTURNLEFTHAND
TOPHUNG
BOTTOMHUNG
PIVOTHORIZONTAL
PIVOTVERTICAL
SLIDINGHORIZONTAL
SLIDINGVERTICAL
REMOVABLECASEMENT
FIXEDCASEMENT
OTHEROPERATION
NOTDEFINED

Formal representations

XML Specification

 <xs:simpleType name="IfcWindowPanelOperationEnum">

  <xs:restriction base="xs:string">

   <xs:enumeration value="sidehungrighthand"/>

   <xs:enumeration value="sidehunglefthand"/>

   <xs:enumeration value="tiltandturnrighthand"/>

   <xs:enumeration value="tiltandturnlefthand"/>

   <xs:enumeration value="tophung"/>

   <xs:enumeration value="bottomhung"/>

   <xs:enumeration value="pivothorizontal"/>

   <xs:enumeration value="pivotvertical"/>

   <xs:enumeration value="slidinghorizontal"/>

   <xs:enumeration value="slidingvertical"/>

   <xs:enumeration value="removablecasement"/>

   <xs:enumeration value="fixedcasement"/>

   <xs:enumeration value="otheroperation"/>

   <xs:enumeration value="notdefined"/>

  </xs:restriction>

 </xs:simpleType>

EXPRESS Specification


TYPE IfcWindowPanelOperationEnum = ENUMERATION OF (

 SIDEHUNGRIGHTHAND,
 SIDEHUNGLEFTHAND,
 TILTANDTURNRIGHTHAND,
 TILTANDTURNLEFTHAND,
 TOPHUNG,
 BOTTOMHUNG,
 PIVOTHORIZONTAL,
 PIVOTVERTICAL,
 SLIDINGHORIZONTAL,
 SLIDINGVERTICAL,
 REMOVABLECASEMENT,
 FIXEDCASEMENT,
 OTHEROPERATION,
 NOTDEFINED);
END_TYPE;


 EXPRESS-G diagram

	Window Panel Operation Enum
	Énumération du fonctionnement des panneaux de fenêtre
