EditorGUI.DrawTextureAlpha

Suggest a change

Success!

Thank you for helping us improve the quality of Unity Documentation. Although we cannot accept all submissions, we do read each suggested change from our users and will make updates where applicable.

Close

Submission failed

For some reason your suggested change could not be submitted. Please <a>try again</a> in a few minutes. And thank you for taking the time to help us improve the quality of Unity Documentation.

Close

Cancel

public static function DrawTextureAlpha(position: Rect, image: Texture, scaleMode: ScaleMode = ScaleMode.StretchToFill, imageAspect: float = 0): void;
public static void DrawTextureAlpha(Rect position, Texture image, ScaleMode scaleMode = ScaleMode.StretchToFill, float imageAspect = 0);

Parameters

position Rectangle on the screen to draw the texture within.
image Texture to display.
scaleMode How to scale the image when the aspect ratio of it doesn't fit the aspect ratio to be drawn within.
imageAspect Aspect ratio to use for the source image. If 0 (the default), the aspect ratio from the image is used.

Description

Draws the alpha channel of a texture within a rectangle.

See Also: GUI.color, GUI.contentColor

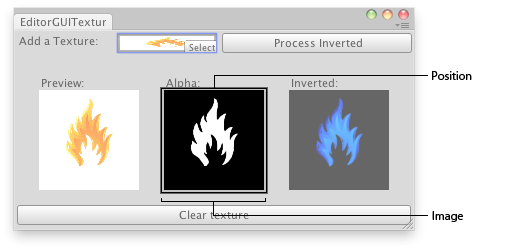

Alpha texture in an Editor Window.

// Load a texture, display the texture, display its alpha channel and
// show a preview of the inverted texture

class EditorGUITextures extends EditorWindow {

var texture : Texture2D; var invertedTexture : Texture2D; var showInverted = false;

@MenuItem("Examples/Texture Previewer") static function Init() { var window = GetWindow(EditorGUITextures); window.position = Rect(0,0,400, 200); window.Show(); }

function OnGUI() { texture = EditorGUI.ObjectField(Rect(3,3,200,20), "Add a Texture:", texture, Texture); if(GUI.Button(Rect(208,3, position.width - 210, 20),"Process Inverted")) { if(invertedTexture) DestroyImmediate(invertedTexture); //Copy the new texture invertedTexture = new Texture2D(texture.width, texture.height, texture.format, (texture.mipmapCount != 0)); for (var m : int = 0; m < texture.mipmapCount; m++) invertedTexture.SetPixels(texture.GetPixels(m), m); InvertColors(); showInverted = true; } if(texture) { EditorGUI.PrefixLabel(Rect(25,45,100,15),0,GUIContent("Preview:")); EditorGUI.DrawPreviewTexture(Rect(25,60,100,100),texture); EditorGUI.PrefixLabel(Rect(150,45,100,15),0,GUIContent("Alpha:")); EditorGUI.DrawTextureAlpha(Rect(150,60,100,100),texture); EditorGUI.PrefixLabel(Rect(275,45,100,15),0,GUIContent("Inverted:")); if(showInverted) EditorGUI.DrawPreviewTexture(Rect(275,60,100,100),invertedTexture); if(GUI.Button(Rect(3,position.height - 25, position.width-6,20),"Clear texture")) { texture = EditorGUIUtility.whiteTexture; showInverted = false; } } else { EditorGUI.PrefixLabel( Rect(3,position.height - 25,position.width - 6, 20), 0, GUIContent("No texture found")); } }

function InvertColors() { for (var m : int = 0; m < invertedTexture.mipmapCount; m++) { var c : Color[] = invertedTexture.GetPixels(m); for (var i : int = 0 ;i < c.Length; i++) { c[i].r = 1 - c[i].r; c[i].g = 1 - c[i].g; c[i].b = 1 - c[i].b; } invertedTexture.SetPixels(c, m); } invertedTexture.Apply(); } function OnInspectorUpdate() { Repaint(); } }
