EditorGUILayout.LayerField

Suggest a change

Success!

Thank you for helping us improve the quality of Unity Documentation. Although we cannot accept all submissions, we do read each suggested change from our users and will make updates where applicable.

Close

Submission failed

For some reason your suggested change could not be submitted. Please <a>try again</a> in a few minutes. And thank you for taking the time to help us improve the quality of Unity Documentation.

Close

Cancel

public static function LayerField(layer: int, params options: GUILayoutOption[]): int;
public static int LayerField(int layer, params GUILayoutOption[] options);
public static function LayerField(layer: int, style: GUIStyle, params options: GUILayoutOption[]): int;
public static int LayerField(int layer, GUIStyle style, params GUILayoutOption[] options);
public static function LayerField(label: string, layer: int, params options: GUILayoutOption[]): int;
public static int LayerField(string label, int layer, params GUILayoutOption[] options);
public static function LayerField(label: string, layer: int, style: GUIStyle, params options: GUILayoutOption[]): int;
public static int LayerField(string label, int layer, GUIStyle style, params GUILayoutOption[] options);
public static function LayerField(label: GUIContent, layer: int, params options: GUILayoutOption[]): int;
public static int LayerField(GUIContent label, int layer, params GUILayoutOption[] options);
public static function LayerField(label: GUIContent, layer: int, style: GUIStyle, params options: GUILayoutOption[]): int;
public static int LayerField(GUIContent label, int layer, GUIStyle style, params GUILayoutOption[] options);

Parameters

label Optional label in front of the field.
layer The layer shown in the field.
style Optional GUIStyle.
options An optional list of layout options that specify extra layouting properties. Any values passed in here will override settings defined by the style.
See Also: GUILayout.Width, GUILayout.Height, GUILayout.MinWidth, GUILayout.MaxWidth, GUILayout.MinHeight, GUILayout.MaxHeight, GUILayout.ExpandWidth, GUILayout.ExpandHeight.

Returns

int The layer selected by the user.

Description

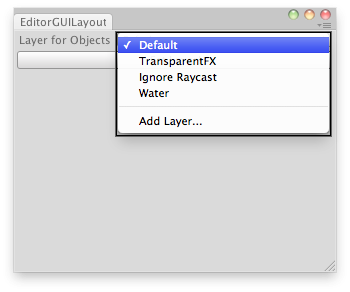

Make a layer selection field.


Set the layer of the selected GameObjects.

#pragma strict

// Simple editor script that lets you set the layer for the // selected GameObjects.

public class LayerFieldExample extends EditorWindow {

static var selectedLayer: int = 0;

@MenuItem("Examples/Layer Field usage") static function Init() { var window = GetWindow(LayerFieldExample); window.Show(); }

// Disable menu if we dont have at least 1 gameobject selected @MenuItem("Examples/Layer Field usage", true) static function ValidateSelection() { return Selection.activeGameObject != null; }

function OnGUI() { selectedLayer = EditorGUILayout.LayerField("Layer for Objects:", selectedLayer); if (GUILayout.Button("Set Layer!")) SetLayer(); }

static function SetLayer() { for (var go in Selection.gameObjects) go.layer = selectedLayer; } }
// Simple editor script that lets you set the layer for the
// selected GameObjects.

using UnityEngine; using UnityEditor;

public class LayerFieldExample : EditorWindow { static int selectedLayer = 0;

[MenuItem("Examples/Layer Field usage")] static void Init() { LayerFieldExample window = (LayerFieldExample)GetWindow(typeof(LayerFieldExample)); window.Show(); }

// Disable menu if we dont have at least 1 gameobject selected [MenuItem("Examples/Layer Field usage", true)] static bool ValidateSelection() { return Selection.activeGameObject != null; }

void OnGUI() { selectedLayer = EditorGUILayout.LayerField("Layer for Objects:", selectedLayer); if (GUILayout.Button("Set Layer!")) SetLayer(); }

static void SetLayer() { foreach (var go in Selection.gameObjects) go.layer = selectedLayer; } }
